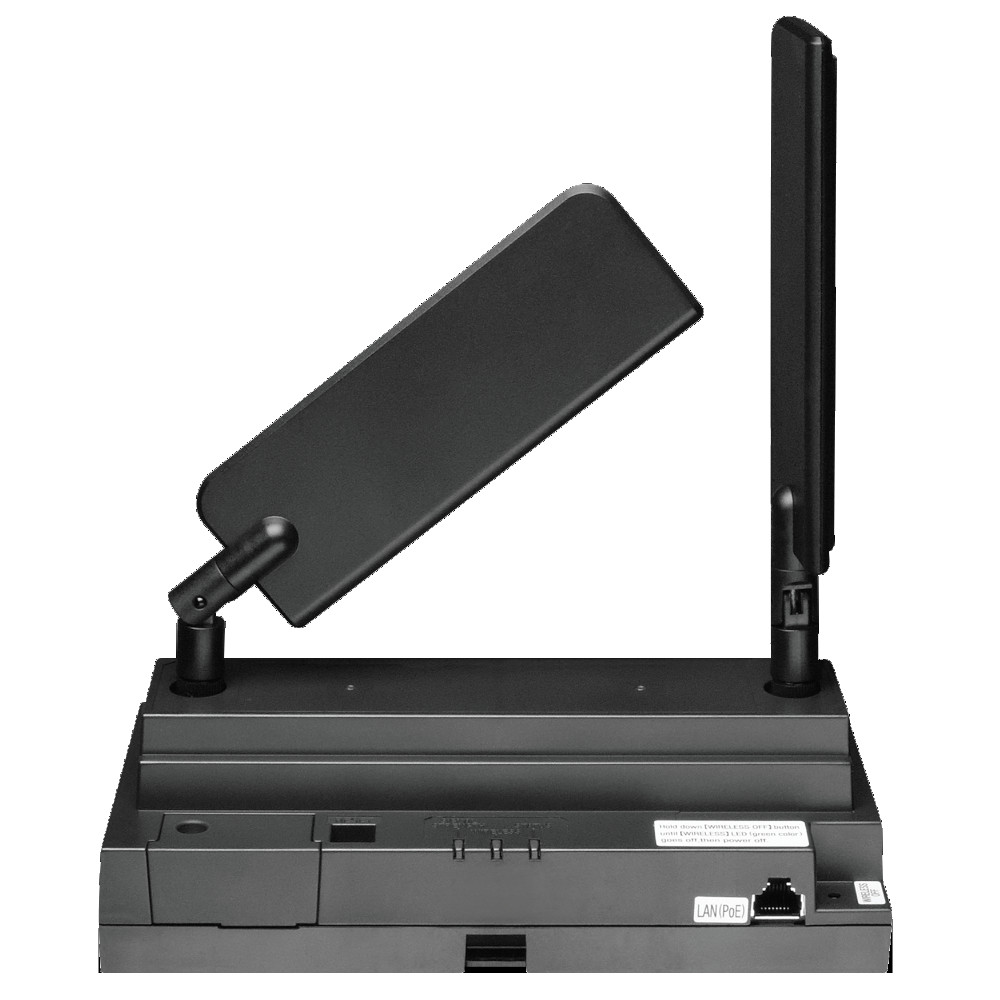

Aiphone IXG Cloud Gateway with 4G SIM Slot (requires AI-IXG-APP-LIC)

AI-IXGW-TGW
AVAILABLE TO ORDER
Aiphone IXG Cloud Gateway with 4G SIM Slot (requires AI-IXG-APP-LIC)

IXG Cloud Gateway Adaptor with Sim Card

The AI-IXGW-TGW is a mobile app and cellular gateway adaptor for the IX and IXG Series IP video intercom. Up to 99 gateway adaptors are allowed per system. This adaptor allows calls to reach cloud-based mobile apps and phone numbers, giving users the ability to speak to visitors remotely and release the door.

Once activated, A SIM card provides a 4G connection. The 4G connection allows for a single phone number to be called per tenant, and can be used as the primary network connection, or as a backup failsafe.

The IXG mobile app is compatible with iOS and Android mobile devices. Up to eight apps can be registered per tenant station.

  • PoE (IEEE 802.3af class 0)
  • DIN rail mountable
  • Eight simultaneous calls per adaptor
  • Supports up to 9,999 IXG mobile apps
  • Optional 4G LTE data connection
  • Allows telephone calls from door and entrance stations

  • Power Source: PoE
  • Consumption: 2.8W standby, 5.8W max
  • LAN: Ethernet (10BASE-T, 100BASE-TX)
  • Wireless Network: LTE, WCDMA
  • Sim card not included: Telstra and Optus recommended
  • Packet delivery: Unicast, Multicast
  • Protocol: IPv4/v6, TCP, UDP, SIP, HTTPS, RTP, RTCP, SRTP, SRTCP, IGMP, MLD, SFTP, DHCP, NTP, DNS, MQTT, ICE, DTLS, SDP
  • Channel: Intercom: 8 Phone: 1
  • Encryption: TLS 1.2, IEEE802.1X
  • Operating Temp: -10C to +50C
  • Dimensions (main):10.79cm H x 20.95cm W x 6.98cm D
  • Antenna Length: 16 inch
