*SpOrd* Aiphone IXG IP Video Tenant Station with T-Coil Compatibility

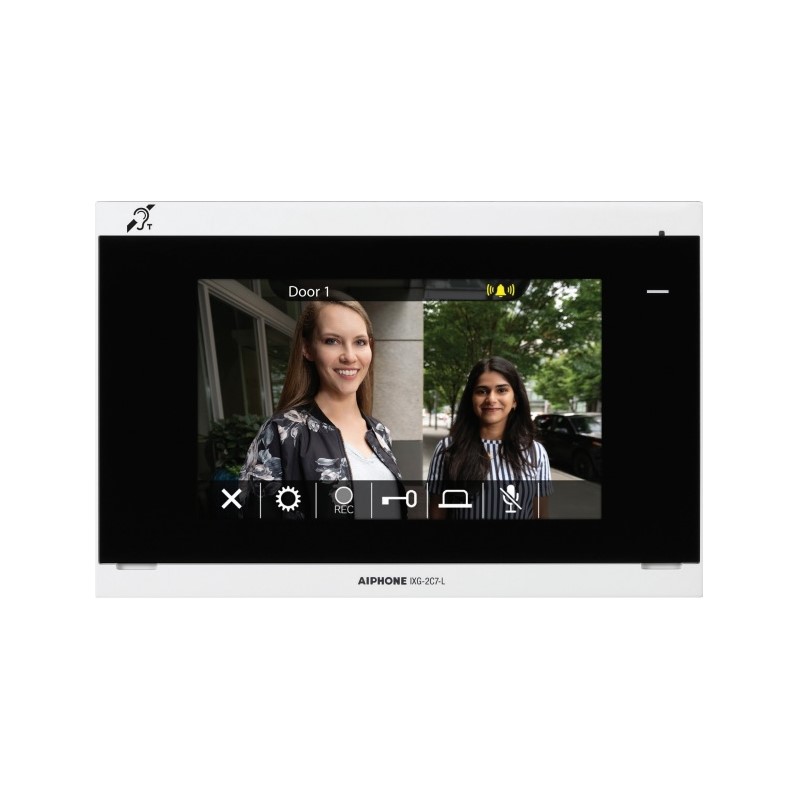

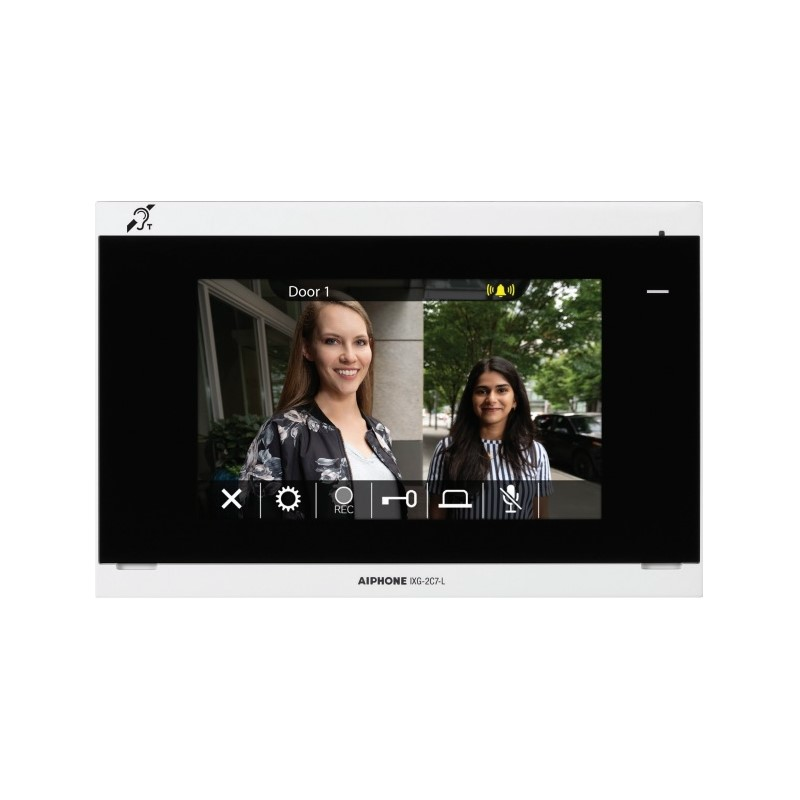

The AI-IXG-2C7-L is an IP video tenant station with a 7-inch LCD touchscreen for the IXG Series multi-tenant system. Each tenant can have up to 8 IXG-2C7/ AI-IXG-2C7-L’s. The station can answer calls from an entrance station, guard station, or individual door station. Once the call is answered, communication is hands-free.

A T-Coil hearing aid can pick up audio signals from the AI-IXG-2C7-L. Touching the key button will activate the door release associated with the connected entrance station or door station. The AI-IXG-2C7-L can selectively call other AI-IXG-2C7-L’s in the same tenant or collectively call associated mobile apps. It can request an elevator to come to its floor. It will also retain a history of calls that it has received. The history capacity can be expanded by adding a microSD card.

• T-Coil hearing aid compatibility
• PoE compliant
• 7-inch LCD colour touchscreen
• Hands-free audio communication
• microSD card slot for added memory
• Place calls to other stations with-in tenant
• Call concierge / guard
• Call elevator to floor
• Monitor door stations

Datasheets

• AI-IXG-2C7-L Datasheet.pdf

• Power Source: PoE
• Consumption: 1.9W standby, 6W max.
• Screen: 7-inch LCD TFT touchscreen
• Monitor resolution: 800 x 400
• Communication: Full duplex
• Audio Codec: G.711
• Video Codec: H.264, MJPEG
• Protocol:
• IPv4/v6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP/RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS, TLS
• Encryption: TLS 1.0, 1.1, 1.2
• Operating Temp: 0 C - 40 C
