Aiphone IX Series Touchless Slim Door Station, PoE, IP54, IK09

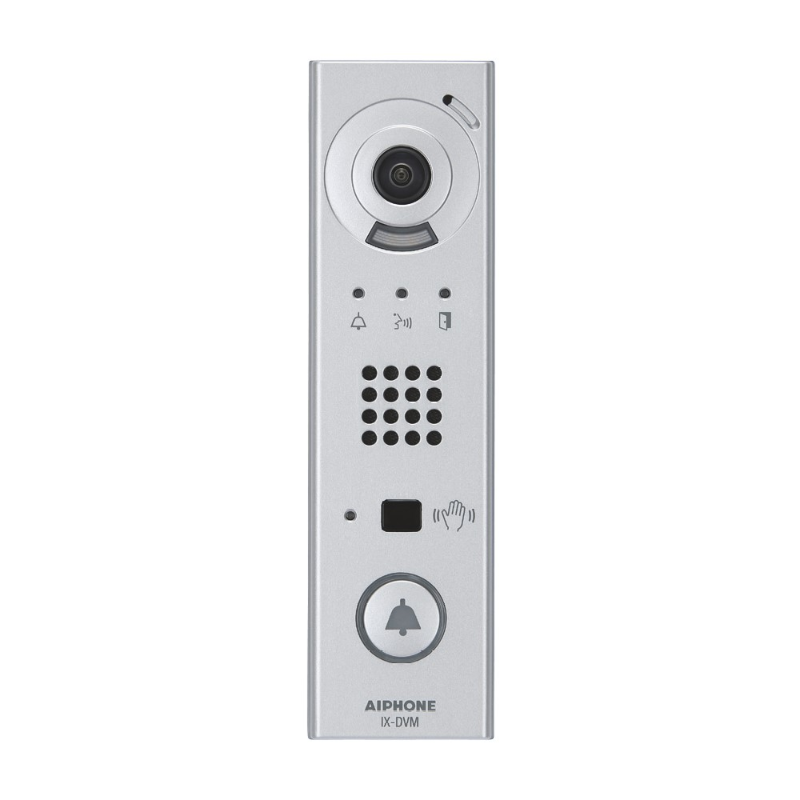

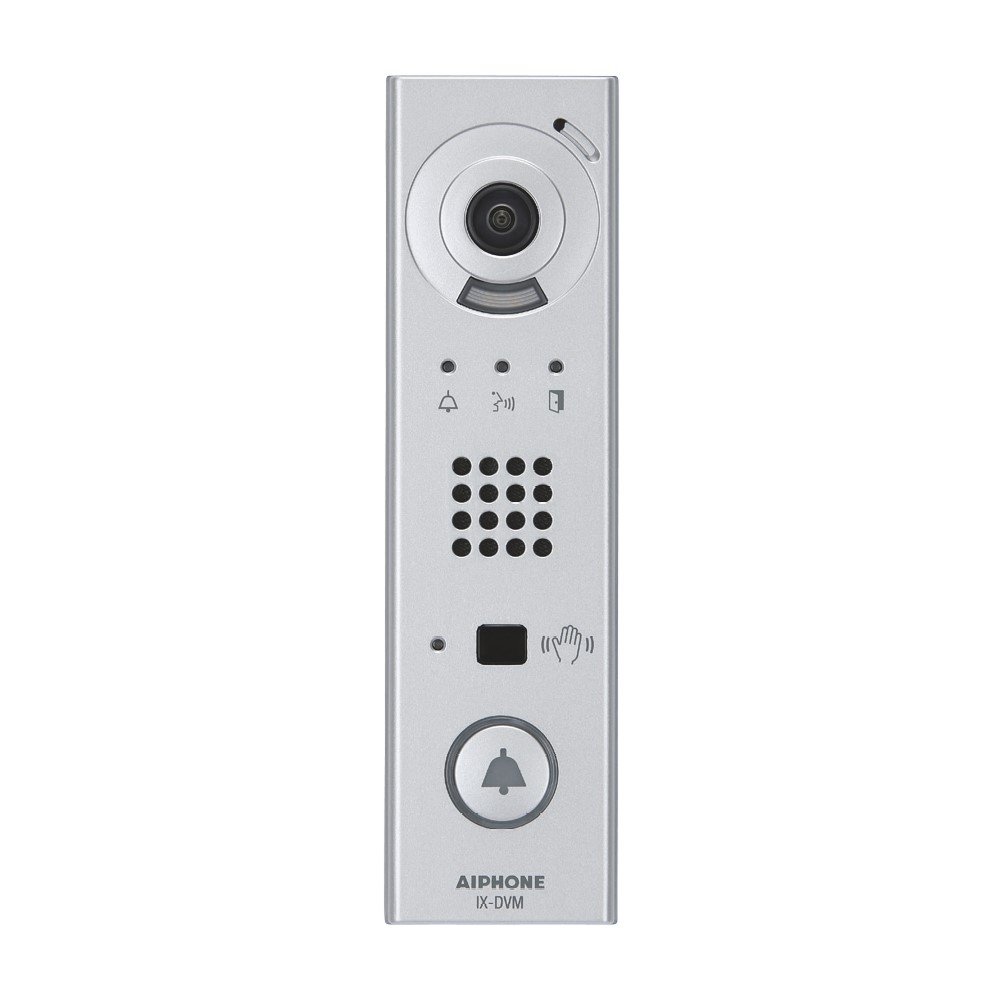

Aiphone's AI-IX-DVM door station is the first of its kind, offering a touchless calling solution in a slim and compact design. It can call up to 20 indoor stations simultaneously and features LED indicators that illuminate when calling, talking or door release functionality is in operation.

The camera's wide viewing angle and dynamic range allows installation in almost any environment or location to capture video in full view and clarity. Footage can be recorded locally onto an SD card or onto systems that support ONVIF.

• Small form factor for mullion mounting
• Contactless call sensor
• SIP 2.0 compliant
• 720p HD, wide dynamic range camera
• White LED for low-light illumination
• Slot for microSD card
• 802.3af PoE compliant

Datasheets

• AI-IX-DVM Datasheet.pdf

• Power Source: PoE (IEEE 802.3af class 0)
• Power draw: 4.6W max.
• Camera: 720p HD, wide dynamic range
• Camera angle: approx. 170 degrees horizontal
• Outputs: 1x relay
• Audio codec: G.711, G.722
• Video codec: H.264, ONVIF
• Operating temperature: -40 degrees to 60 degrees
• Protection: IP54, IK07
• Dimensions: 48mm (W) x 33mm (D) x 175mm (H)
