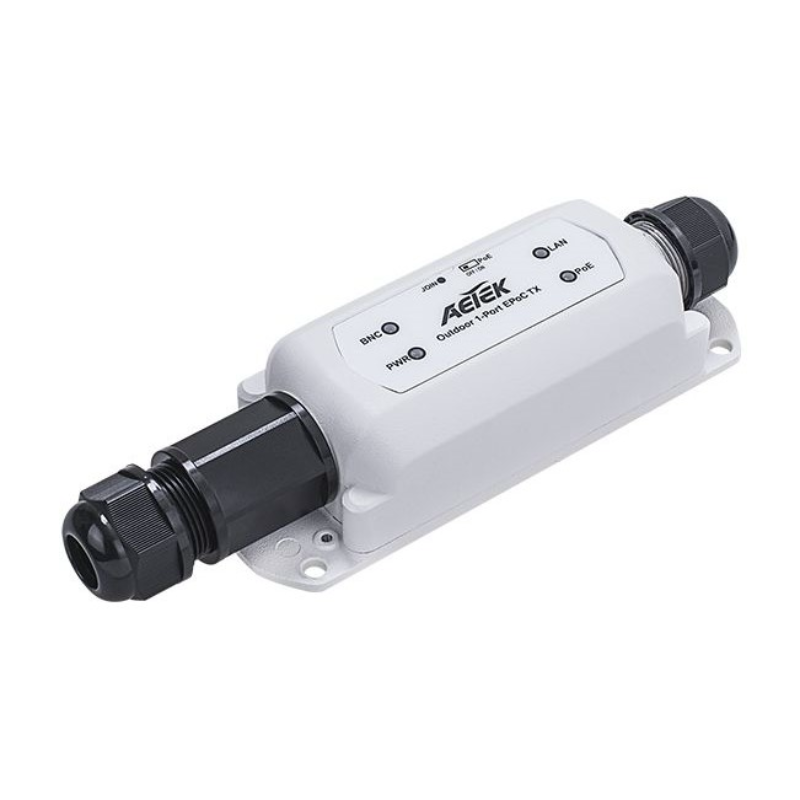

Aetek 1 Port EPoC Outdoor Transmitter, 1 BNC, 1 RJ45, Up to 1200m, PoE Pass Through

Aetek 1 Port EPoC Outdoor Transmitter, 1 BNC, 1 RJ45, Up to 1200m, PoE Pass Through



Code: AET-XE22-110-TX
Brand: Aetek
Product Details
Aetek 1 Port EPoC Outdoor Transmitter, 1 BNC, 1 RJ45, Up to 1200m, PoE Pass Through


The Aetek AET-XE22-110-TX is a long-reach solution providing fast ethernet and PoE over RG6 coaxial cable up to 1200m (3937ft) for any brand of PoE IP camera. This EPoC product line is also often used to upgrade legacy CCTV to IP surveillance without requiring a change to existing RG59/RG6 coaxial cable. Furthermore, this outdoor EPoC solution is a rugged and economical alternative to using optical fibre, as the power over coax to remote PoE IP camera is more convenient than an optical fibre solution which often doesn't carry power.

  • One BNC coax port and one PoE PSE port
  • IP66/IK10
  • TX mode
  • Enclosure with wall-mount
  • 6KV surge protection
  • Eliminates the need for power supply beside long range PoE IP camera
  • Delivers up to 9.7W at 1.2km (3937ft) for one PoE IP camera
  • Dimensions: 157 x 55.8 x 39.75mm
  • Weight: 0.3kg
  • Operating temperature: -40 - 60 degrees celsius
  • Operating humidity: 10 - 95 per cent (non-condensing)
