*SpOrd* Aetek Outdoor PoE over UTP/STP Cat.x Cable Transmitter, Up to 1200m

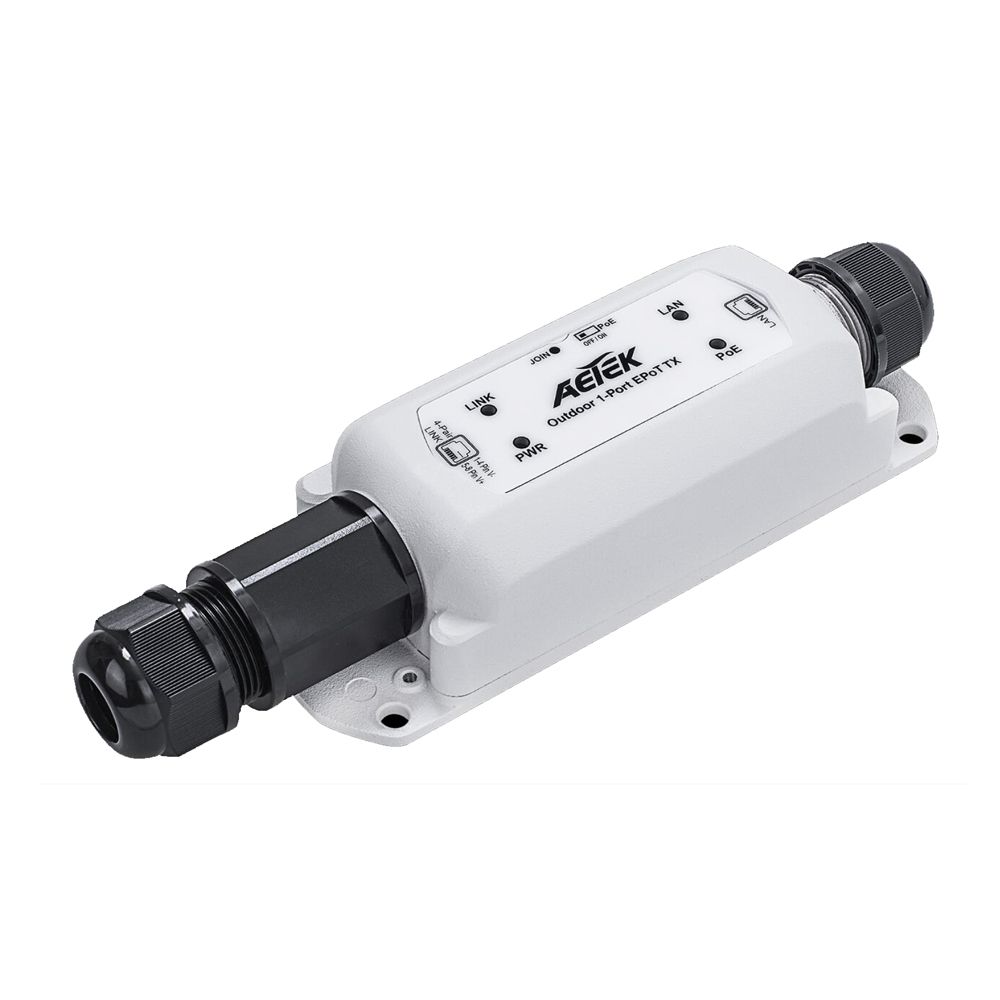

The Aetek AET-TE22-110-TX is an outdoor 1-to-1 EPoT (ethernet and power over UTP/STP cable (Cat5/Cat6)  transmitter(TX) adapter equipped with 1 EPoT port and 1 RJ-45 PoE port, is designed to connect a remote PoE IP camera over single UTP/STP cable without requiring extra power supply. This cutting-edge model delivers data and power at long range up to 1,200m for a PoE IP camera. The outdoor model sppports built-in 6KV EPoT surge protection, IP67 rated, IK10 vandal proof, and operates under harsh weather conditions between -30 to 60 degrees celsius.

• One RJ45 EPoT port and one 10/100Mbps LAN PoE PSE port
• IP67 rated, IK10 vandal proof
• Built-in 6KV EPoT surge protection
• Long-range IP data and PoE over 4-pair/2-pair/1-pair UTP /STP cat.5e/6 cables
• Supports peer-to-peer, daisy-chain, and failover ring topologies
• Eliminates the need for intermediate ethernet switches and power supplies for long-range deployment
• Plug-and-play connection
• PoE output on/off control

Datasheets

• AET-TE22-110-TX Datasheet.pdf
