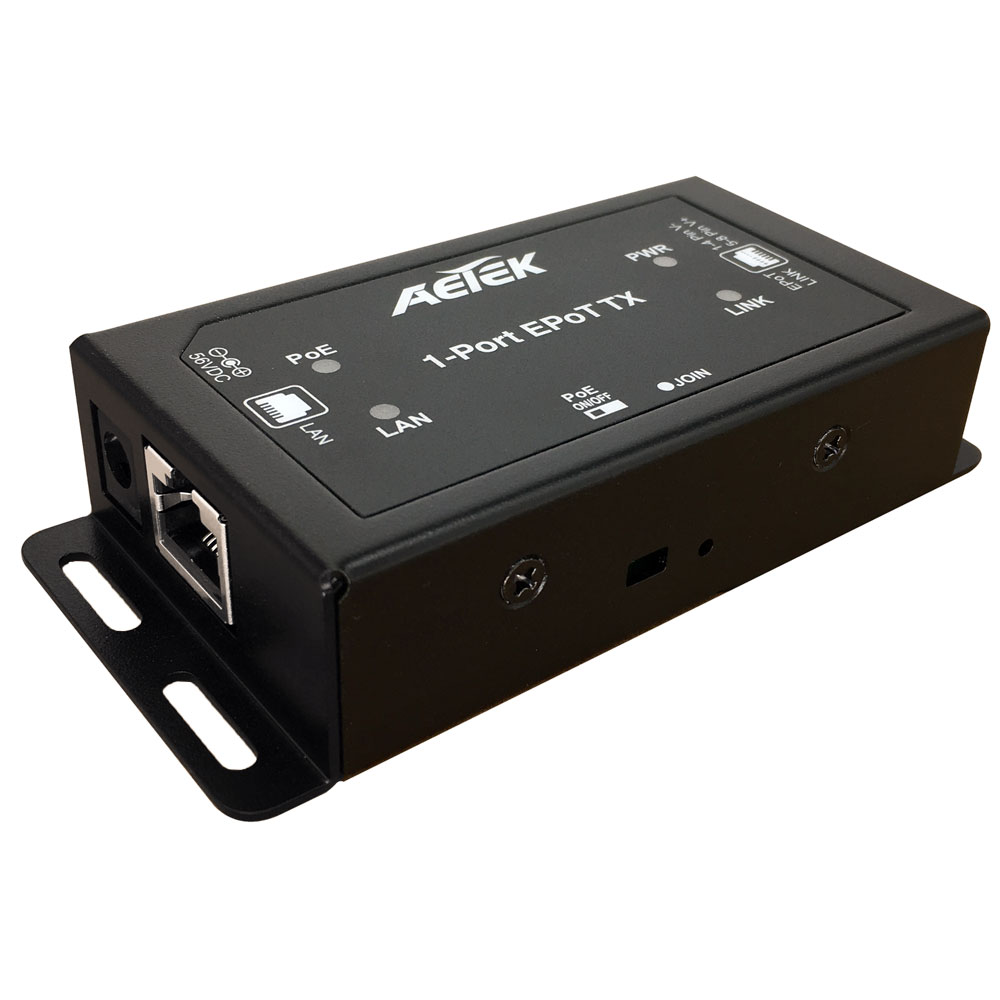

Aetek Indoor PoE Over UTP/STP Cat.x Cable Transmitter, Up to 1200m, PoE Pass Through

The Aetek AET-TE10-110-TX, a 1-to-1 EPoT (ethernet and power over UTP/STP cable (Cat5/Cat6) transmitter (TX) equipped with 1 EPoT port and 1 RJ-45 PoE port and is designed to connect a remote PoE IP camera over single UTP/STP Cat.5e/6 cable without requiring an extra power supply. This cutting-edge model delivers data and power at long range up to 1,200m for a PoE IP camera.

• One RJ45 EPoT port and one 10/100Mbps LAN PoE PSE port
• Long-range IP data and PoE over 4-pair/2-pair/1-pair UTP /STP cat.5e/6 cables
• Delivers up to 9.7 watts at 1,200m(3,937ft) for a PoE IP camera
• Supports peer-to-peer, daisy-chain, and failover ring topologies
• Eliminates the need for intermediate ethernet switches and power supplies for long-range deployment
• Plug-and-play connection
• PoE output on/off control

Datasheets

• AET-TE10-110-TX Datasheet.pdf
