*SpOrd* Aetek 24 Channel Modular Surge Protectors, 802.3af/802.3at/802.3bt/UPoE

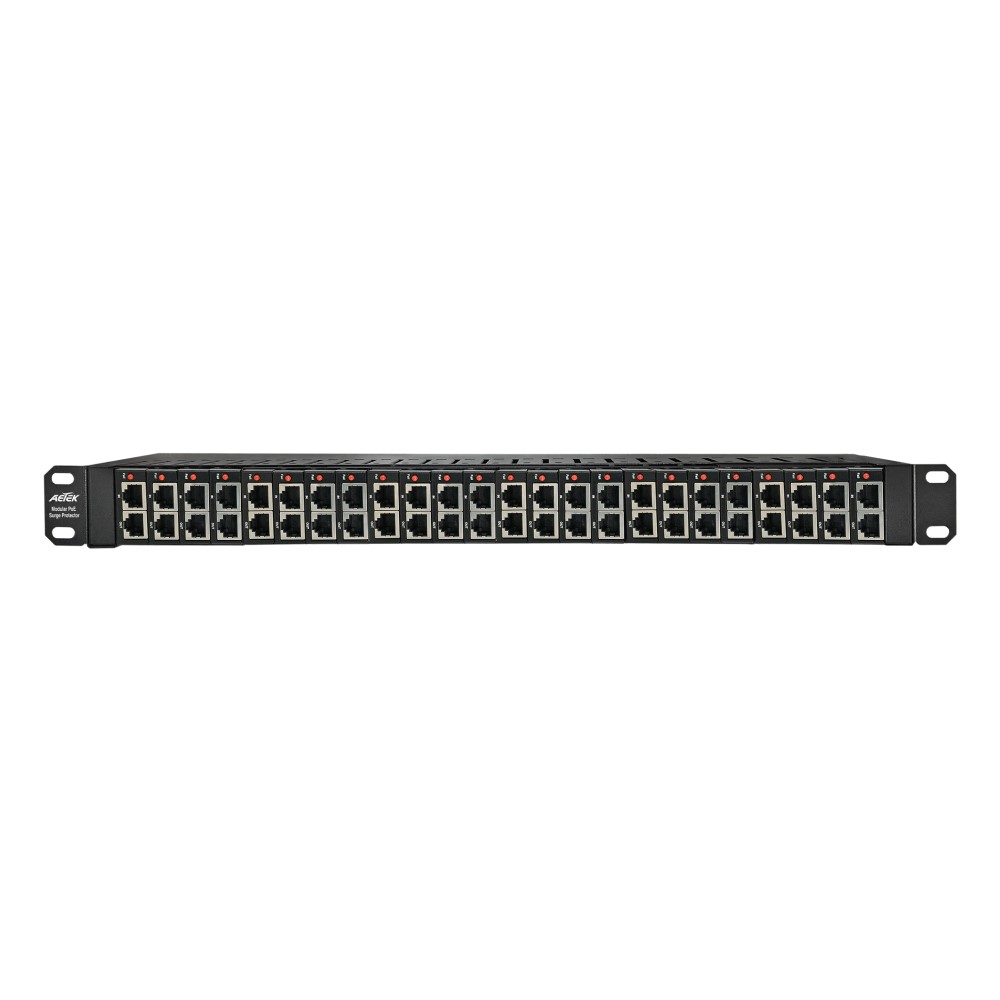

The Aetek AET-SD-424 is a PoE surge protector with modular-design that keeps PoE switches, PoE PDs and any other IP devices safe from lightning and other forms of electrical interference such as power surges and spikes over networking cables. The replacement module design allows you to swap the modules without removing the entire unit from the din-rail or the rack. These units are fully compatible with 802.3af/802.3at/802.3bt/UPoE standard, providing protection to both Ethernet data and PoE power feed, these include outdoor IP cameras, wireless AP, and other networking devices. These harden-graded PoE surge protectors operating between -40 degrees and 85 degrees during harsh weather conditions, plug-and-play design defends the surge up to 20KV / 10KA easily.

• Slide-in modular design
• Quick swap when life time of single PoE surge module is expired
• Supports 10M/100M/1G/2.5G bps Ethernet
• Supports 802.3af / 802.3at / 802.3bt / UPoE
• Protects eight wires of networking cable including PoE
• Protects up to 20KV / 10KA surge
• Failure LED indicator
• Operating temperature from -40 degrees to 85 degrees

Datasheets

• AET-SD-4x4 Datasheet.pdf
