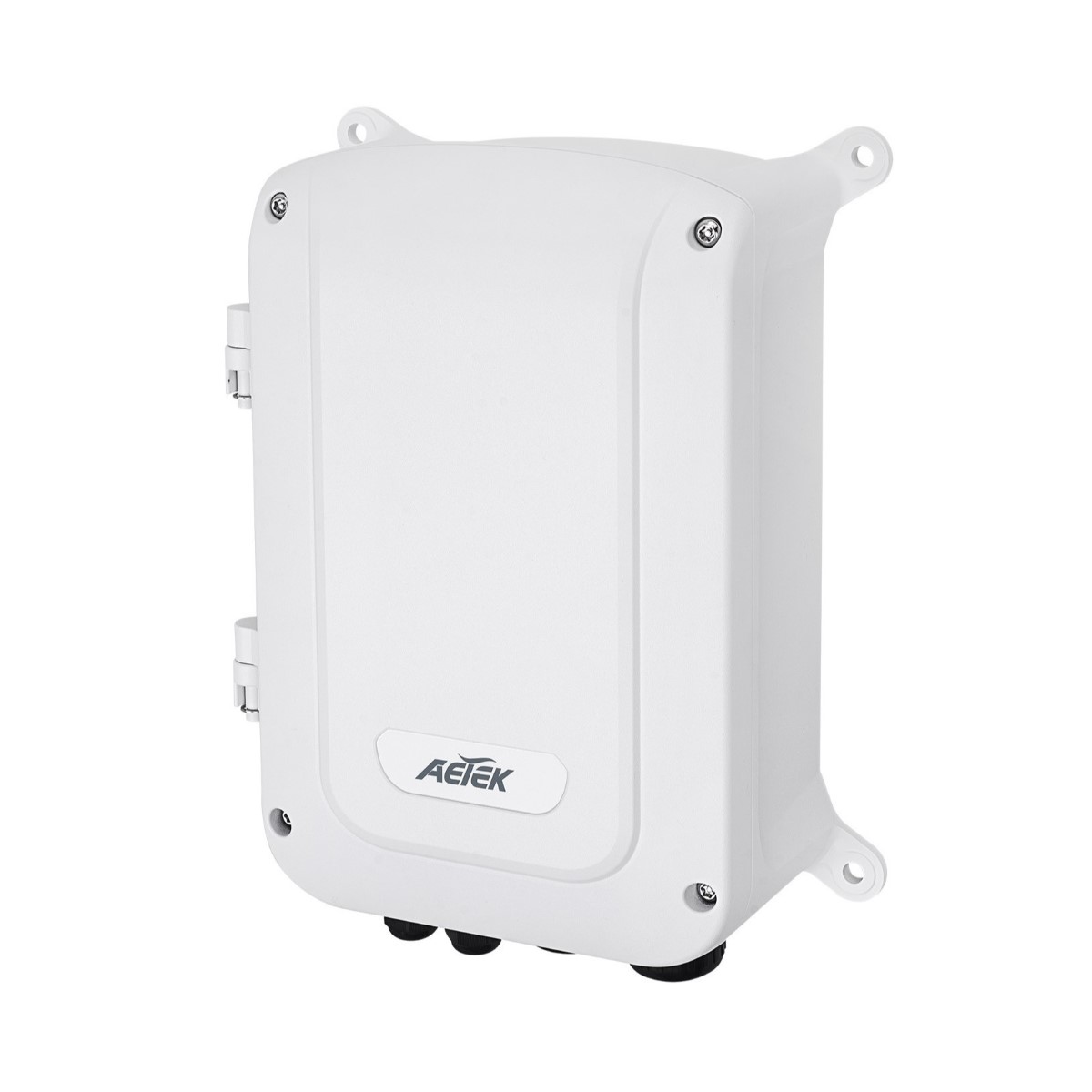

Aetek 8 Port Outdoor 1Gb PoE Switch, 2x SFP/RJ45, IP67/IK10, 250W, 240VAC

The Aetek AET-H40-08230250 is a gigabit PoE solution for industrial environments and offers four 10/100/1000BASE-T ports featuring 30-watt 802.3at. Additionally, the units feature two additional gigabit copper ports and an extra two SFP fibre slots for uplink.

With a total PoE power budget of up to 250 watts, the AET-H40-08230250 meets the demand of PoE power for any HD IP surveillance application. It enables the connection of PoE power devices (PDs) to the network, including PoE IP cameras, PoE wireless access points (APs), and other industrial applications.

The Aetek AET-H40-08230250 supports 6KV surge protection for each ethernet port and harden-graded construction to ensure sufficient operation in harsh weather conditions ranging from -40 to 75 degrees Celsius.

What's in the box:

• AET-H40-08230250 switch,
• Concrete sleeve anchors

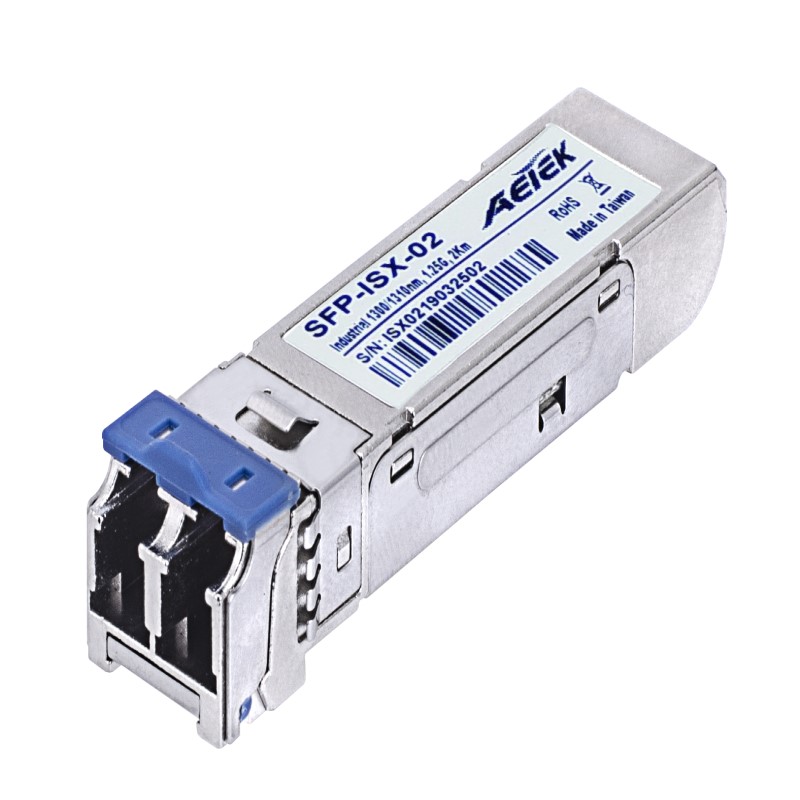

• Flexible SFP transceiver ports for uplink
• IP67 standard
• IK10 impact rated cast aluminium housing
• Operating temperature from -40 to 65 degrees celsius
• 30W IEEE802.3at compliant per port
• 250W of total power budget
• Supports 10/100/1000Mbps data rates
• Built-in 6KV surge protection for each PoE port
• Built-in 40KV surge protection for AC power
• IEEE 802.3az energy efficient ethernet standard for green power

Datasheets

• AET-H40-xxx Datasheet.pdf

• Input voltage: 100VAC - 240VAC
• Output voltage: 48 - 56 VDC
• Dimensions: 245.8 x 315.4 x 118mm
• Weight: 4.37kg
• Operating temperature: -40 to 65 degrees celsius
• Operating humidity: 5 to 95 per cent (non-condensing)
