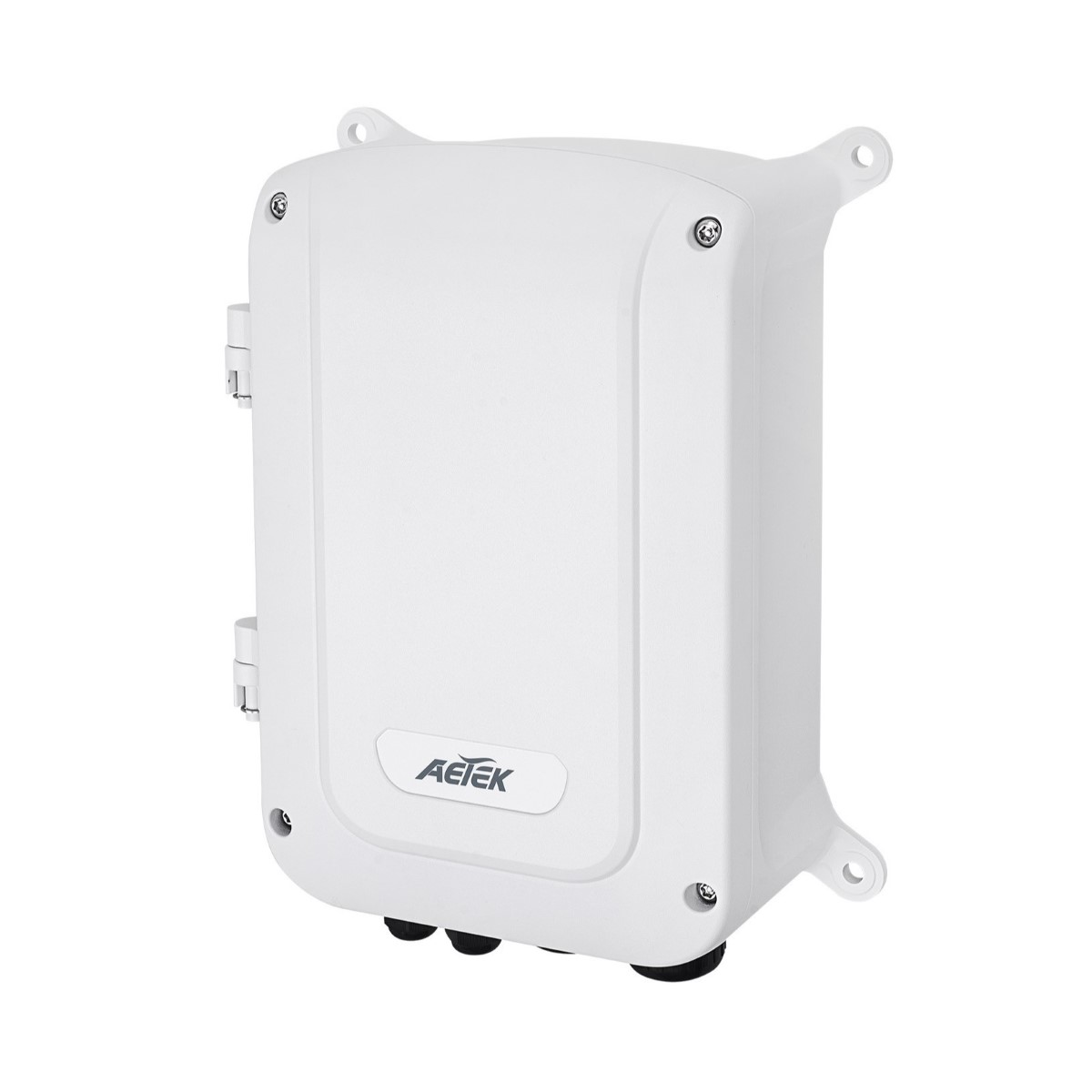

Aetek 4 Port Outdoor 1Gb PoE Switch, 2x SFP/RJ45, IP67/IK10 150W, 240VAC

The Aetek AET-H40-04430150 is a gigabit PoE solution for industrial environments and offers four 10/100/1000BASE-T ports featuring 30-watt 802.3at. Additionally, the units feature two additional gigabit copper ports and another two extra SFP fibre slots for uplink.

With a total PoE power budget of up to 120 watts, the AET-H40-04430150 meets the demand of PoE power for any HD IP surveillance application. It enables the connection of PoE power devices (PDs) to the network, including PoE IP cameras, PoE wireless access points (APs), and other industrial applications.

The Aetek AET-H40-04430150 supports 6KV surge protection for each ethernet port and harden-graded construction to ensure sufficient operation in harsh weather conditions ranging from -40 to 75 degrees celsius.

• Flexible SFP transceiver ports for uplink
• IP67 standard
• IK10 impact rated cast aluminium housing
• Operating temperature from -40 to 65 degrees celsius
• 30W IEEE802.3at compliant per port
• 150W of total power budget
• Supports 10/100/1000Mbps data rates
• Built-in 6KV surge protection for each PoE port
• Built-in 40KV surge protection for AC power
• IEEE 802.3az energy efficient ethernet standard for green power

Datasheets

• AET-H40-xxx Datasheet.pdf

• Input voltage: 100VAC - 240VAC
• Output voltage: 48 - 56 VDC
• Dimensions: 245.8 x 315.4 x 118mm
• Weight: 4.2kg
• Operating temperature: -40 to 65 degrees celsius
• Operating humidity: 5 to 95 per cent (non-condensing)
