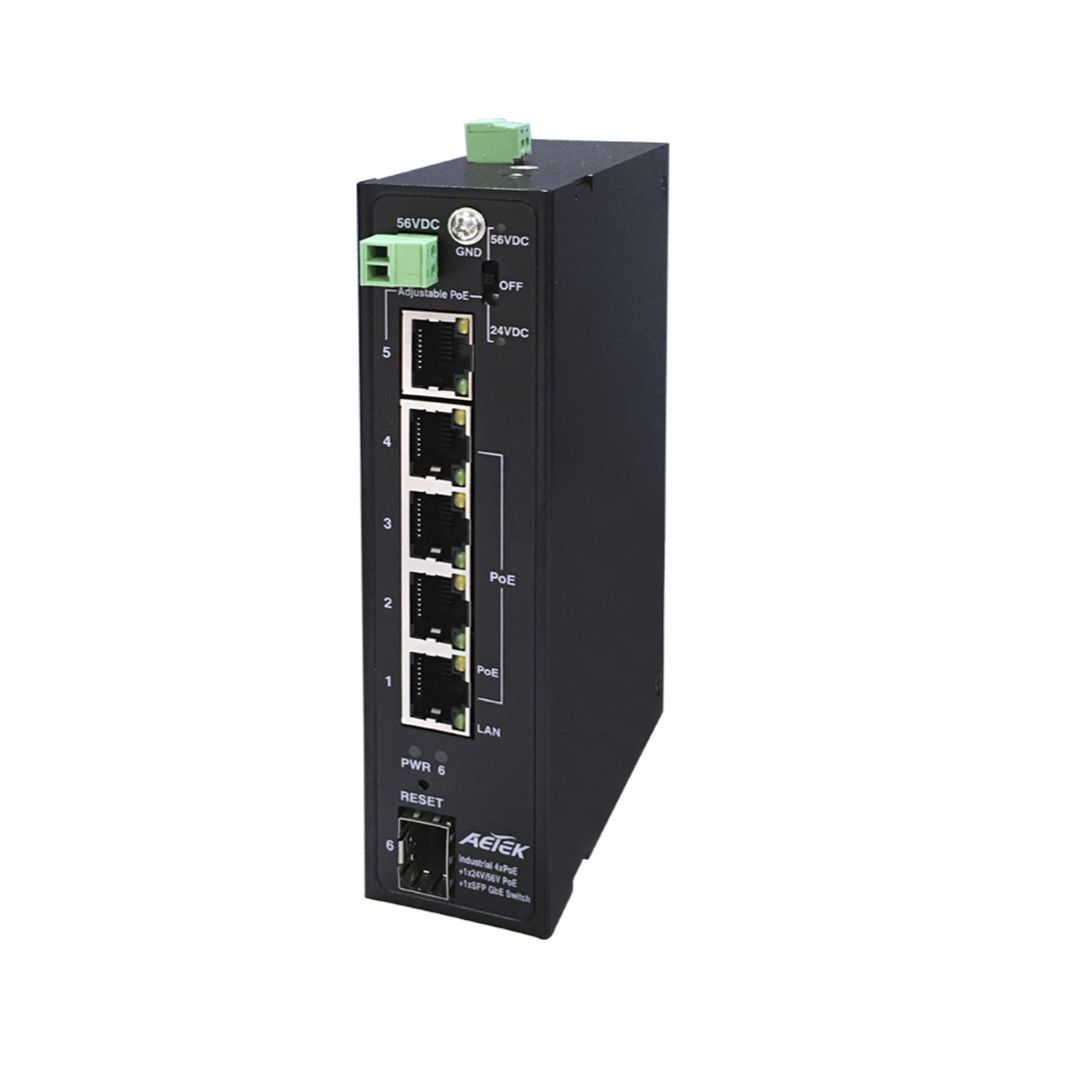

Aetek 5 Port Gigabit Unmanaged Industrial PoE Switch, 1x 24V POE, 1x SFP, 120W, 48VDC

Aetek's AET-H32-042-30 is an industrial gigabit adjustable PoE switch that is designed with IP30, 6KV PoE ethernet port surge protection, and an operating temperature between -40 and 75 degrees Celsius during harsh weather conditions. The switch enables indoor connections of PoE PDs to the network such as outdoor IP cameras, wireless APs, and other industrial applications. The AET-H32-042-30 provides 4-port gigabit PoE with 1 port gigabit adjustable 24VDC or 56VDC PoE as well as additional SFP transceiver slots for flexible uplink. The Aetek AET-H32-042-30 switch is easy-to-install and provides power up to 30W per port.

Item requires a separate 48-56VDC power supply, such as PLA-PWR-240-48 or CSD-EDR120-48.

• Adjustable 24W at 24VDC or 56VDC PoE port x1
• Flexible SFP transceiver port for uplink
• Operating temperature between -40 and 75 degrees Celsius
• 30W at 56VDC IEEE802.3at PoE port x4
• Supporting 10/100/1000Mbps data rates
• 6KV PoE surge protection
• IEEE 802.3az energy efficient ethernet standard for green power

Datasheets

• AET-H32-042-30 Datasheet.pdf
