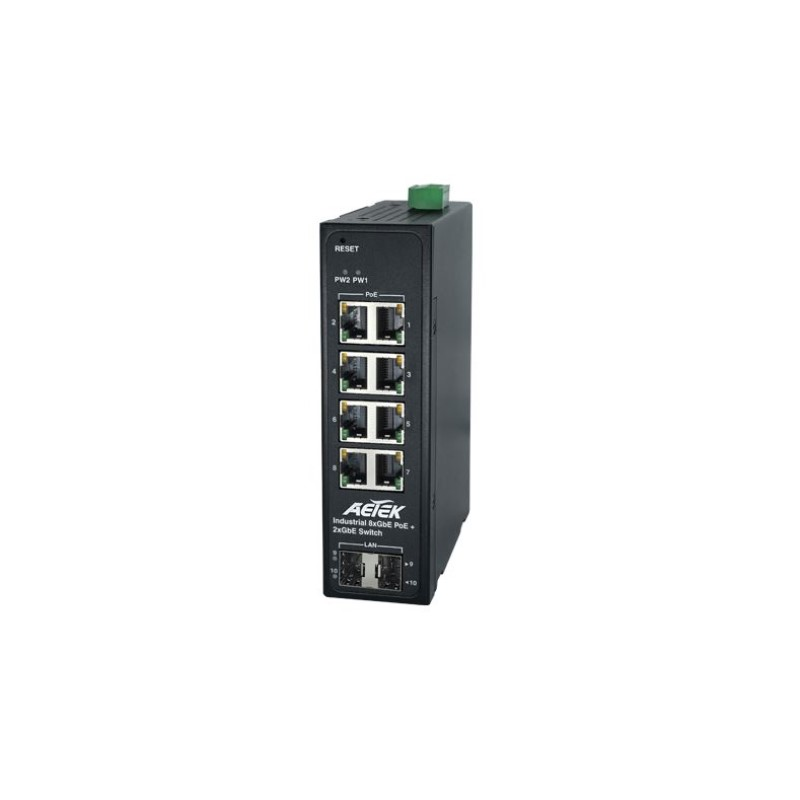

The AET-D40-082-30 is a Gigabit PoE solution for the Industrial environment and offers eight of 10/100/1000BASE-T ports featuring 30-watt 802.3at. Further empowering the units are 2 additional Gigabit copper ports and another 2 extra SFP fibre slots for uplink.

With a total PoE power budget up to 240 watts, the D40-082-30 meets the demand of PoE power for any HD IP surveillance applications. It enables the connection of PoE power devices (PDs) to the network, including PoE IP cameras, PoE wireless access points (APs), and other industrial applications.

The D40 series of Industrial Unmanaged PoE Switches supports 6KV surge protection for each Ethernet port and harden-graded construction to ensure operation in harsh weather conditions ranging from -40 to 75 degrees Celsius.

• Flexible SFP transceiver port for uplink
• Operating temperature between -40 and 75 degrees Celsius
• 30W at 56VDC IEEE802.3at PoE port x 8
• Supporting 10/100/1000Mbps data rates
• 6KV PoE surge protection

Datasheets

• AET-D40-082-30 Datasheet.pdf
