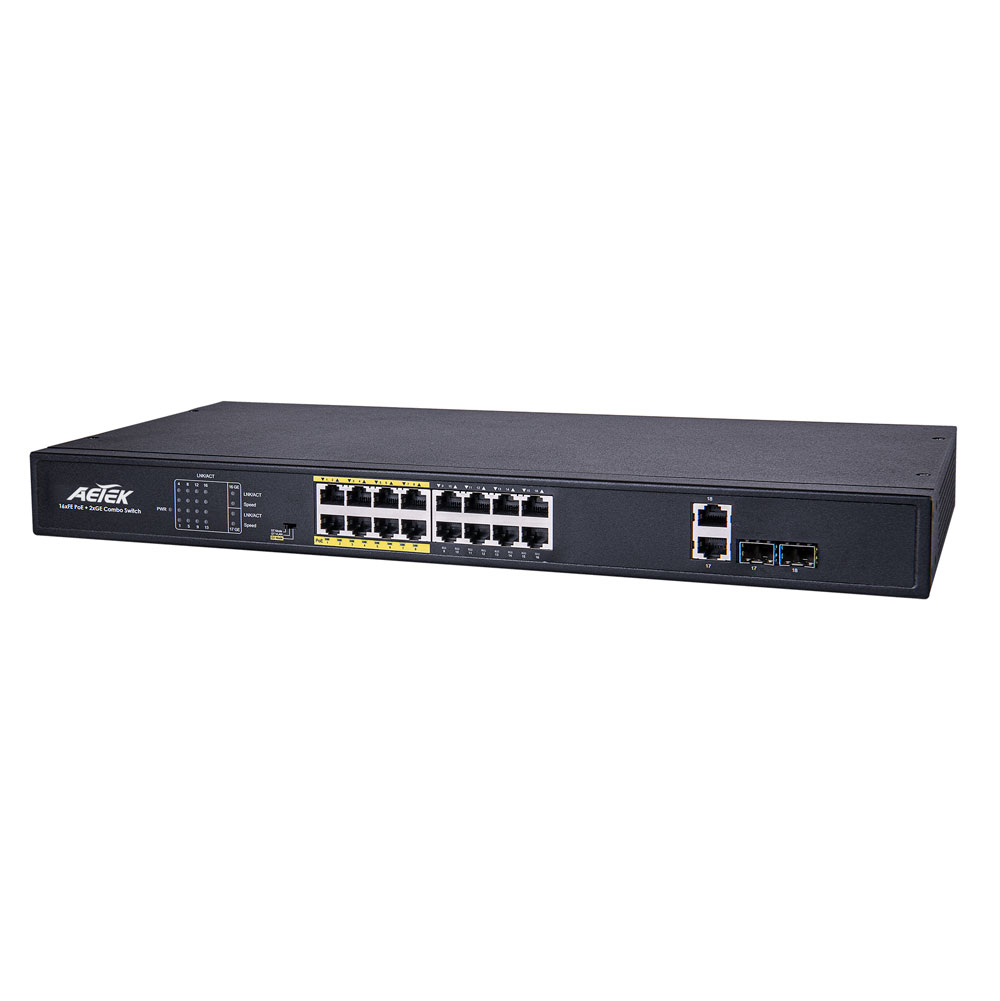

The Aetek AET-C11-16231250 is an indoor unmanaged EXPoE switch series equipped with DIP switch which provides EX "EXtensive" operation mode. This switch is specially designed for IP surveillance application and besides the standard 802.3af/at PoE functions, the EX mode can deliver extreme distances of camera images and maximum power of up to 250m via specific EX ports for long reach PoE IP cameras. The Aetek AET-C11-16231250 also features an extra 20 per cent range of input voltage tolerance, lightning surge protection of AC power and PoE surge protection to prevent the damage that can be caused by outside unstable AC power, lightning surges and power spikes. Altogether, these unique features reduce the costs to replace the damaged fault unit.

• 8 of the 16 PoE ports can be adjusted as EX PoE mode
• Total power budget 250W
• 15.4W/30W 802.3af/802.3at compliant
• 12KV PoE surge protection each port
• 4KV AC surge protection
• 20 per cent range of input voltage tolerance
• Circuit protection prevents power interference between ports
• Detects PoE PD (power device) automatically
• EX mode OFF reaches PoE camera up to 100m at 100Mbps via any port
• EX mode ON reaches 802.3af camera up to 250m at 10Mbps via EXPoE ports
• EX mode ON reaches 802.3at camera up to 200m at 10Mbps via EXPoE ports

Datasheets

• AET-C11-xx-31-xx Datasheet.pdf

• Input voltage: 100VAC - 240VAC
• Output voltage: 54VDC
• Dimensions: 440 x 230 x 44mm
• Weight: 3.6kg
• Operating temperature: 0 - 50 degrees celsius
• Operating humidity: 10 to 90 per cent (non-condensing)
