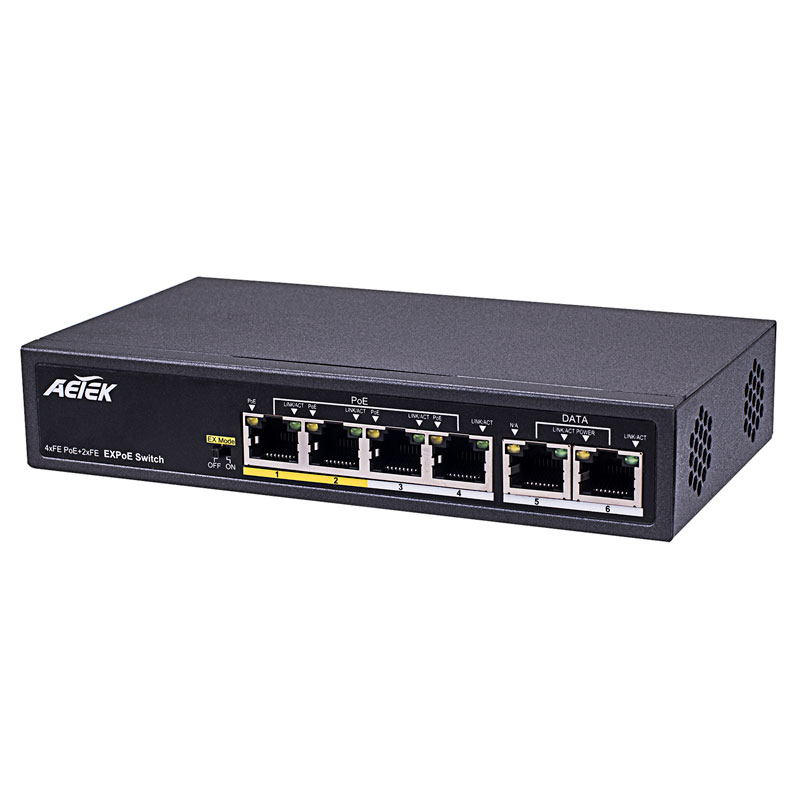

The Aetek AET-C11-04230065 is an indoor unmanaged EXPoE switch series equipped with DIP switch which provides EX "EXtensive" operation mode. This switch is specially designed for IP surveillance application and besides the standard 802.3af/at PoE functions, the EX mode can deliver extreme distances of camera images and maximum power of up to 250m via specific EX ports for long reach PoE IP cameras. The Aetek AET-C11-04230065 also features an extra 20 per cent range of input voltage tolerance, lightning surge protection of AC power and PoE surge protection to prevent the damage that can be caused by outside unstable AC power, lightning surges and power spikes. Altogether, these unique features reduce the costs to replace the damaged fault unit.

• 2 of the 4 PoE ports can be adjusted as EX PoE mode
• Total power budget 65W
• 15.4W/30W 802.3af/802.3at compliant
• 4KV PoE surge protection each port
• 4KV AC surge protection
• 20 per cent range of input voltage tolerance
• Circuit protection prevents power interference between ports
• Detects PoE PD (power device) automatically
• EX mode OFF reaches PoE camera up to 100m at 100Mbps via any port
• EX mode ON reaches 802.3af camera up to 250m at 10Mbps via EXPoE ports
• EX mode ON reaches 802.3at camera up to 200m at 10Mbps via EXPoE ports

Datasheets

• AET-C11-xxx Datasheet.pdf

• Input voltage: 100VAC - 240VAC
• Output voltage: 54VDC
• Dimensions: 169 x 94.1 x 32mm
• Weight: 0.5kg
• Operating temperature: 0 - 50 degrees celsius
• Operating humidity: 10 to 90 per cent (non-condensing)
