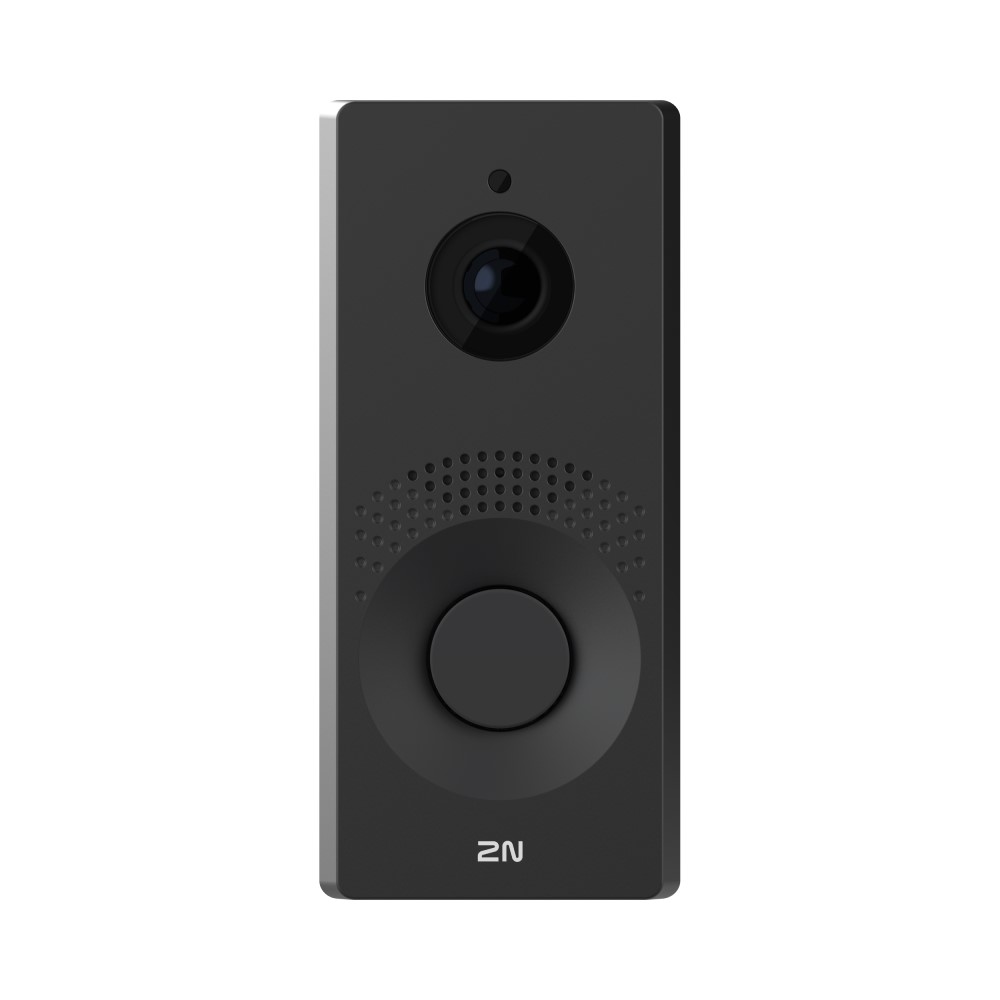

2N IP One Intercom Main Unit, IP66, IK10, Black, Requires IP One Installation Box
A highly durable IP video intercom designed for family homes, the 2N IP One is available from 2N Communications. In addition to a Full HD, 156-degree wide-angle camera, it features Adaptive Face Zooming for constant access to the front door and home surroundings. Additionally, it can alert the owner of unexpected activity, improving the security of the residence. The 2N IP One can be connected to the 2N indoor station, the My2N app, and leading home automation systems to enhance resident experience.
Note: It requires the flush installation box 2N-02941-001.
- The colour of the backlit button is customisable to full RGB spectrum and indicates the current intercom’s status: idle, ringing, in-call or door open
- The body is IP66 and IK08 certified, made of high-quality anodised aluminium, which ensures exceptional resistance to vandals, water, and dust
- You can connect the door strike directly to the 2N IP One. This allows you to remotely answer the door for a visitor, let them enter your property using a QR code, or open the door for yourself using the My2N app
- You can integrate the IP video intercom with leading home automation and office building systems
Power
- Power supply: PoE and/or 12 V/1 A DC
- LAN: 10/100BASE-TX with Auto-MDIX, RJ-45 jack
- Recommended cabling: Cat-5e or better
- Active switch output: 12 V DC/max 600 mA
- Passive switch: NO contacts, 20V AC or 30V DC, 1A
- Tamper switch: yes
Audio
- Microphone: 1 integrated microphone
- Amplifier: 5 W RMS (Class D)
- Speaker: 1 integrated, 3W
- Volume control: adjustable with automatic adaptive mode
- Audio output: 3W
Camera & Video
- Sensor: 1/2.7'' colour CMOS
- Focal length: 1.93 mm
- View angle: 156 (H), 116 (V)
- Infrared: yes
- WDR: yes
- Minimum illumination: 0,3 lux without IR illumination
- Resolution: 1920 x 1440 (4:3)
- Frame rate: max. 30 fps
Dimensions
- Device: (above the wall) 78mm(W) x 172mm (H) x 10mm
- Flush mounting box: 67mm(W) x 167mm(H) x 56mm(D)
- Frame Material: aluminium casting (three colours)
- Button: 1
- Operating temperature -40C to +60C
- Storage temperature -40C to +70C
- Operating relative humidity 10%-95% (non-condensing)
- Weight 355 g
- Weatherproof Rating: IP66
- Anti Vandal Rating: IK10
