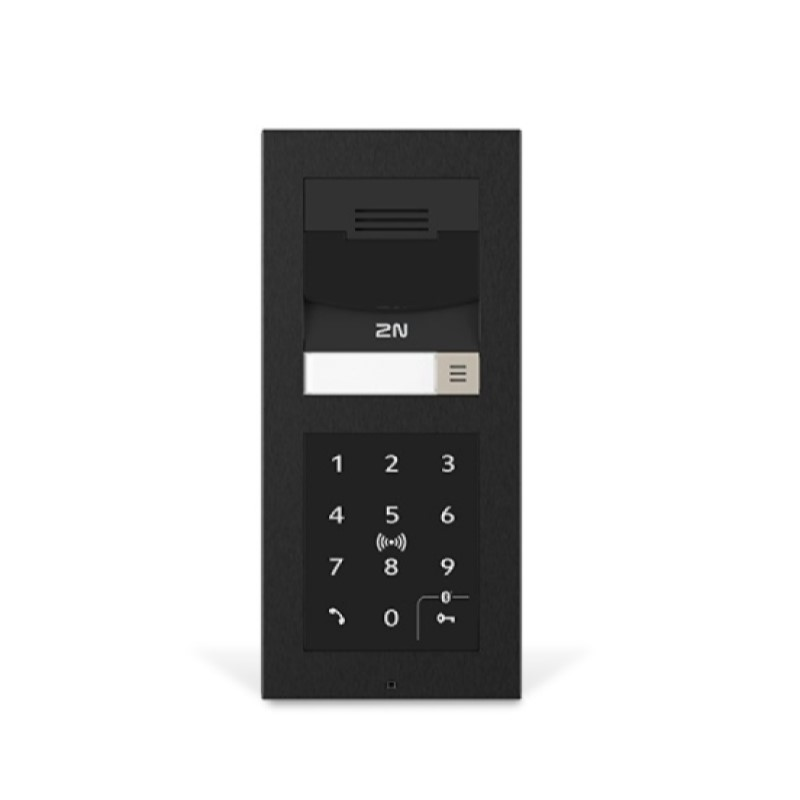

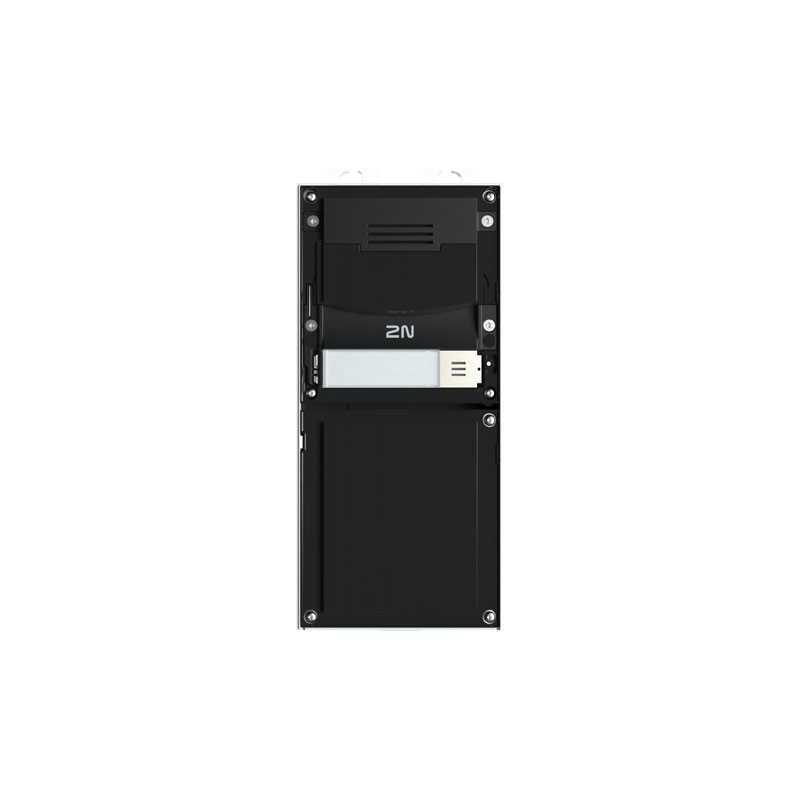

2N IP Verso 2.0 Intercom Unit, Black

2N-02908-001
AVAILABLE TO ORDER
2N IP Verso 2.0 Intercom Unit, Black

The second generation of the Verso IP intercom is a modular system you can customise to your customers’ needs. The 2N-02908-001 boasts a wide-angle, full HD camera and an ARTPEC-7 processor that powers advanced features such as QR code reading. Enjoy unparalleled modularity, superb image quality and a wide variety of access methods.

Power Supply

  • PoE and/or 12 V/1 A DC
  • PoE 802.3af (Class 0-12.95 W)


Interfaces

  • LAN 10/100BASE-TX with Auto-MDIX, RJ-45 jack
  • Recommended cabling: Cat-5e or better
  • Active switch output: 8 to 12 V DC/max 400 mA
  • Passive switch: NO/NC contacts, up to 30 V/1 A AC/DC
  • Inputs: 1 input - in passive/active mode (-30 V to +30 V DC)

Audio

  • Microphone: 1 integrated microphone
  • Amplifier: 5 W (Class D) amplifier
  • Speaker: 2 W / 8
  • Line out: 1 VRMS / 600
  • Volume control adjustable with automatic adaptive mode
  • Full duplex: Yes (AEC)
  • Audio output: 1,9 W
  • Protocols: RTP/SRTP
  • Codecs: G.711, G.729, G.722, L16/16kHz

Camera and Video

  • Sensor: 1/2.7'' colour CMOS
  • Focal length: 1.9 mm
  • View angle: 125 (H), 105 (V)
  • View angle: 138 (H), 105 (V)
  • Infrared light: yes
  • WDR: yes
  • Minimal illumination: 0,8 lux without IR illumination
  • Protocols: RTP/RTSP/RTCP/HTTP, ONVIF v2.4 profile S
  • Codecs: MJPEG, H.264, H.265, Zipstream
  • Resolution: H.264, MJPEG max. FullHD (1920 x 1080)
  • Frame rate: max. 30 fps


Bluetooth Reader

  • Version: compatible with Bluetooth 5.0 (BLE)
  • Range: short - typically up to 3m, long - typically up to 10m
  • Security: RSA-1024 and AES-128 encryption
  • RX: sensitivity up to -93 dBm
  • Mode: touch, tap in app, card, motion
  • Mobile Application Support: Android 6.0 and higher, iOS 12.0 and higher


RFID Card Reader

  • Supported frequencies; 125 kHz variant, 13.56 MHz variant, 125 kHz and 13.56 MHz variant
  • Supported card types: card type compatibility depends on Order No.
  • 125 kHz EM4xxx
  • HID Prox: versions with 125 kHz support and S in Order Touch Keypad
  • Technology capacitive touch layer (sensitivity 0,1 pF)
  • Reliability regular automatic calibration


Fingerprint Reader

  • Sensor: optical sensor protected by resistant glass
  • Reliability algorithm for fake fingerprint detection
  • Resistance: resistant to water and dust
  • Signalling acoustic and multicoloured LEDs
  • Sensing area large with dimensions of 15.24 x 20.32 mm
  • Frame: (cover) robust zinc cast frame with surface finish (nickel and black colour)
  • Operating temperature: -40C to +60C
  • Fingerprint Reader module: -20C to +55C
  • Storage temperature: -40C to +70C
  • Operating relative humidity: 10-95 (noncondensing)
  • Weight: 2 kg
  • Cover rating: IP54 and IK08


Surface Mounting Frame Dimensions

  • 1 module 107 (W) x 130 (H) x 28 (D) mm
  • 2 modules 107 (W) x 234 (H) x 28 (D) mm
  • 3 modules 107 (W) x 339 (H) x 28 (D) mm


Flush Mounting Frame Dimensions

  • 1 module 130 (W) x 153 (H) x 5 (D) mm
  • 2 modules 130 (W) x 257 (H) x 5 (D) mm
  • 3 modules 130 (W) x 361 (H) x 5 (D) mm


Flush Mounting Box Minimum Hole Dimensions

  • 1 module 108 (W) x 131 (H) x 45 (D) mm
  • 2 modules 108 (W) x 238 (H) x 45 (D) mm
  • 3 modules 108 (W) x 343 (H) x 45 (D) mm

  • Build the 2N IP Verso 2.0 according to the customer's needs. It comes in either nickel or black finish and allows you to combine 20 different modules to make up a truly unique intercom
  • The WDR-capable lens balances scenes with large variance between bright and dark areas: meaning no more black silhouettes
  • Install 2N IP Verso 2.0 on the wall, flush mounted or on glass
  • The full-HD camera maintains image colour even in low light conditions
