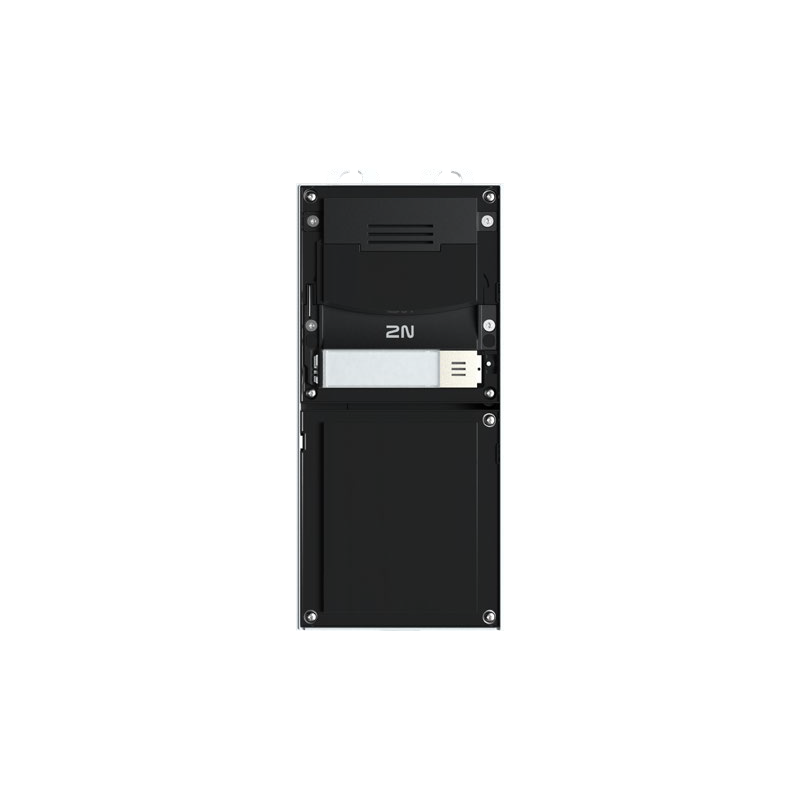

• Build the 2N IP Verso 2.0 according to the customer's needs. It comes in either nickel or black finish and allows you to combine 20 different modules to make up a truly unique intercom
• The WDR-capable lens balances scenes with large variance between bright and dark areas: meaning no more black silhouettes
• Install 2N IP Verso 2.0 on the wall, flush mounted or on glass
• The full-HD camera maintains image colour even in low light conditions

Power Supply

• PoE and/or 12 V/1 A DC
• PoE 802.3af (Class 0-12.95 W)

Interfaces

• LAN 10/100BASE-TX with Auto-MDIX, RJ-45 jack
• Recommended cabling: Cat-5e or better
• Active switch output: 8 to 12 V DC/max 400 mA
• Passive switch: NO/NC contacts, up to 30 V/1 A AC/DC
• Inputs: 1 input - in passive/active mode (-30 V to +30 V DC)

Audio

• Microphone: 1 integrated microphone
• Amplifier: 5 W (Class D) amplifier
• Speaker: 2 W / 8
• Line out: 1 VRMS / 600
• Volume control adjustable with automatic adaptive mode
• Full duplex: Yes (AEC)
• Audio output: 1,9 W
• Protocols: RTP/SRTP
• Codecs: G.711, G.729, G.722, L16/16kHz

Camera and Video

• Sensor: 1/2.7'' colour CMOS
• Focal length: 1.9 mm
• View angle: 125 (H), 105 (V)
• View angle: 138 (H), 105 (V)
• Infrared light: yes
• WDR: yes
• Minimal illumination: 0,8 lux without IR illumination
• Protocols: RTP/RTSP/RTCP/HTTP, ONVIF v2.4 profile S
• Codecs: MJPEG, H.264, H.265, Zipstream
• Resolution: H.264, MJPEG max. FullHD (1920 x 1080)
• Frame rate: max. 30 fps

Bluetooth Reader

• Version: compatible with Bluetooth 5.0 (BLE)
• Range: short - typically up to 3m, long - typically up to 10m
• Security: RSA-1024 and AES-128 encryption
• RX: sensitivity up to -93 dBm
• Mode: touch, tap in app, card, motion
• Mobile Application Support: Android 6.0 and higher, iOS 12.0 and higher

RFID Card Reader

• Supported frequencies; 125 kHz variant, 13.56 MHz variant, 125 kHz and 13.56 MHz variant
• Supported card types: card type compatibility depends on Order No.
• 125 kHz EM4xxx
• HID Prox: versions with 125 kHz support and S in Order Touch Keypad
• Technology capacitive touch layer (sensitivity 0,1 pF)
• Reliability regular automatic calibration

Fingerprint Reader

• Sensor: optical sensor protected by resistant glass
• Reliability algorithm for fake fingerprint detection
• Resistance: resistant to water and dust
• Signalling acoustic and multicoloured LEDs
• Sensing area large with dimensions of 15.24 x 20.32 mm
• Frame: (cover) robust zinc cast frame with surface finish (nickel and black colour)
• Operating temperature: -40C to +60C
• Fingerprint Reader module: -20C to +55C
• Storage temperature: -40C to +70C
• Operating relative humidity: 10-95 (noncondensing)
• Weight: 2 kg
• Cover rating: IP54 and IK08

Surface Mounting Frame Dimensions

• 1 module 107 (W) x 130 (H) x 28 (D) mm
• 2 modules 107 (W) x 234 (H) x 28 (D) mm
• 3 modules 107 (W) x 339 (H) x 28 (D) mm

Flush Mounting Frame Dimensions

• 1 module 130 (W) x 153 (H) x 5 (D) mm
• 2 modules 130 (W) x 257 (H) x 5 (D) mm
• 3 modules 130 (W) x 361 (H) x 5 (D) mm

Flush Mounting Box Minimum Hole Dimensions

• 1 module 108 (W) x 131 (H) x 45 (D) mm
• 2 modules 108 (W) x 238 (H) x 45 (D) mm
• 3 modules 108 (W) x 343 (H) x 45 (D) mm

Datasheets

• 2N-02908-001 Datasheet.pdf
