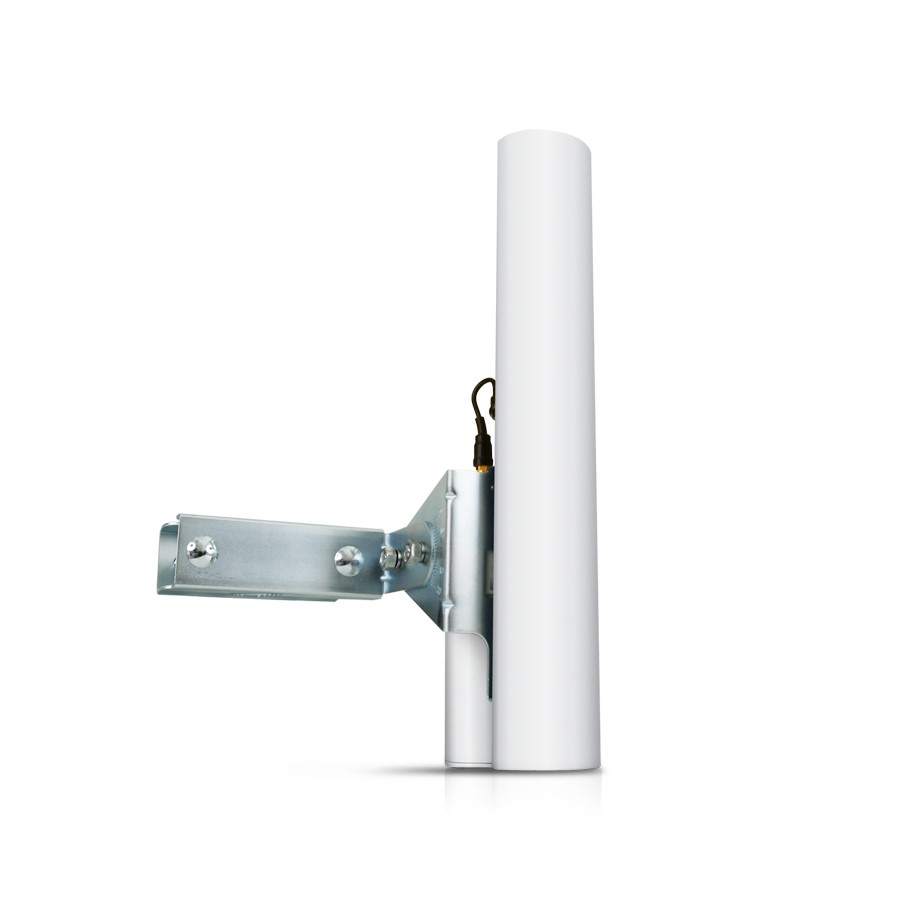

Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 17dBi 90 deg

UB-AM-5G17-90
AVAILABLE TO ORDER
Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 17dBi 90 deg

Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Mounting bracket and weatherproof RF jumpers included.

  • Frequency range: 4.90-5.90 Ghz
  • Gain: 16.1-17.1dBi
  • Polarisation: Dual linear
  • Cross-pol isolation: 22dB min.
  • Max VSWR: 1.5:1
  • Hpol beamwidth (6dB): 72deg
  • Vpol beamwidth (6dB): 93deg
  • Elevation beamwidth: 8deg
  • Elevation downtilt: 4deg
  • Dimensions: 367 x 63 x 41mm
  • Weight: 1.1kg
