Tactical Power Supply, ECO, 13.5VDC, 3.5A, 13.5V Charger, AC Fail & Low Battery Outputs

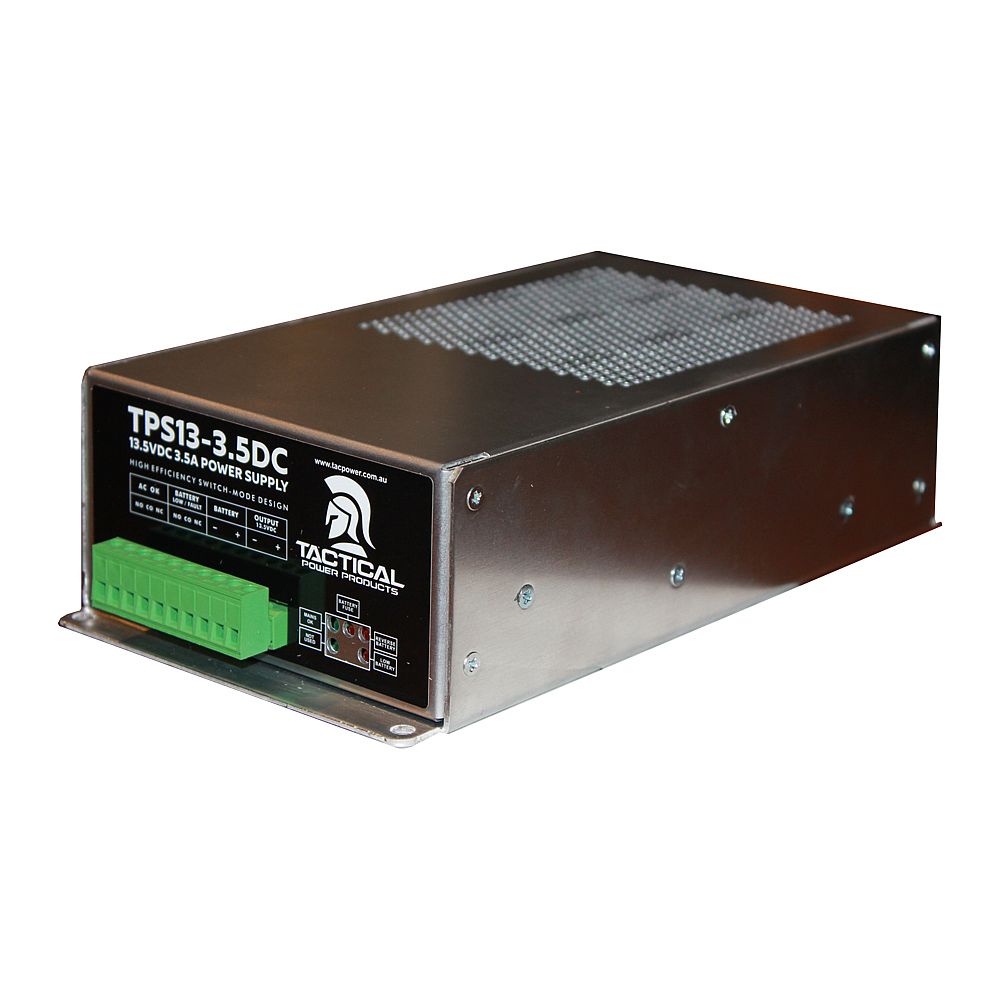

The Tactical TP-TPS13-3.5DC is a dual channel, switch mode power supply that can deliver 13.5Vdc at a continuous load current of 3.5 amps, as well as a battery charge current of 300mA at 13.5Vdc. This gives it a total output of 3.8 amps. The output is short circuit and overload protected with auto reset.

• 3.5A continuous load output
• 300mA battery charge output
• Short circuit protection
• Form C relays for AC fail and low battery
• LED indicators for AC and battery condition
• Mill finished aluminium case
• 3 years warranty

Datasheets

• TP-TPS13-3.5DC Datasheet.pdf

• Input voltage: 240Vac at 50Hz
• Input current: 1A at full load
• Output voltage: 13.5Vdc
• Output current: 3.5A continuous
• Battery charge: 13.5Vdc at 300mA
• AC input indication: SPDT relay and green LED
• Low battery indication: SPDT Relay and red LED
• Operating temperature: 0 - 40 degrees Celsius without derating
• Weight: 668g
• Dimensions: 225mm x 120mm x 60mm
• Colour: mill finish aluminium
• Safety standards: AS/NZS 60950.1:2015
• EMC Standards: AS/NZS CISPR 32:2015 Class B
