*SpOrd* Planet 24 Port PoE Fast Ethernet Switch 2x Gbe TP 2x SFP Uplink, 802.3at, 300W

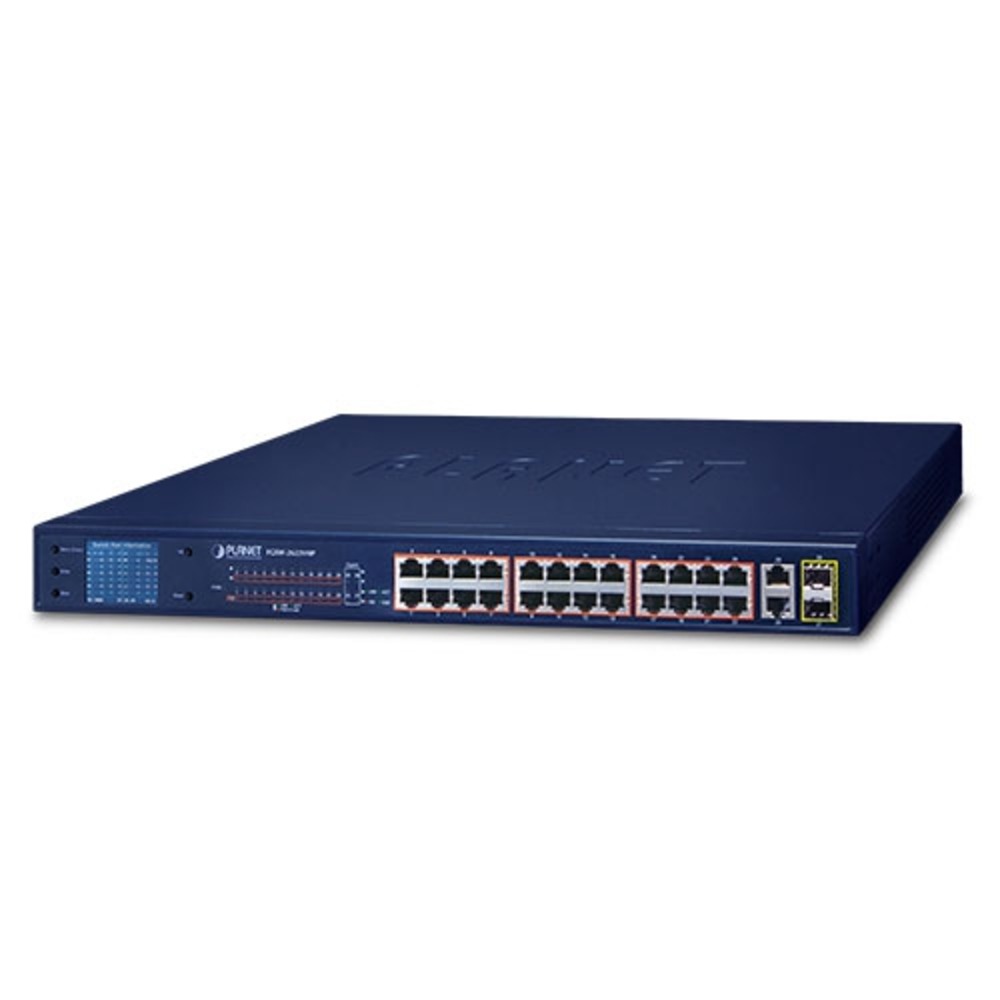

The Planet PLA-FGSW-2622VHP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required. ThePLA-FGSW-2622VHP 10/100BASE-TX Switch features 24 10/100BASE-TX ports with each 30-watt port, 2 Gigabit TP slots and 2 Gigabit SFP interfaces with inner power system. With a total PoE power budget of 300 watts and non-blocking data switching performance, the FGSW-2622VHP can fulfill the demand of sufficient PoE power for HD IP surveillance. It offers a desktop-sized, reliable and visible power solution for small businesses and system integrators deploying Power over Ethernet networks.

• 24 10/100BASE-TX Fast Ethernet RJ45 copper ports
• 2 10/100/1000BASE-T TP interfaces and 2 1000BASE-X mini-GBIC SFP interfaces
• Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
• Up to 24 ports of IEEE 802.3af/at devices powered
• Supports PoE Power up to 32 watts for each PoE port
• Each port supports 54V DC power to PoE Powered Device
• 300-watt PoE budget

Datasheets

• PLA-FGSW-2622VHP Datasheet.pdf
