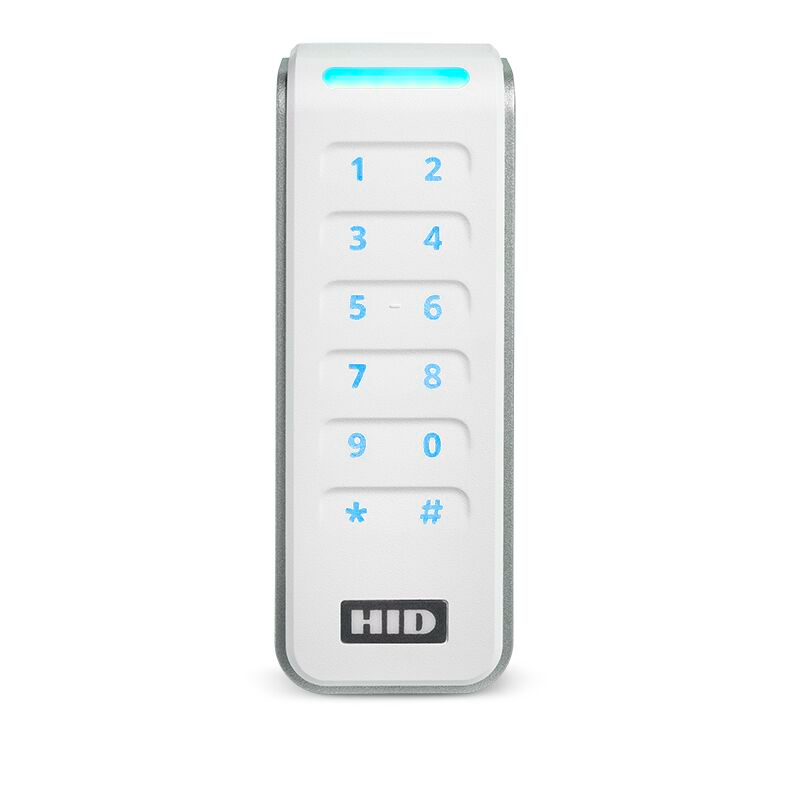

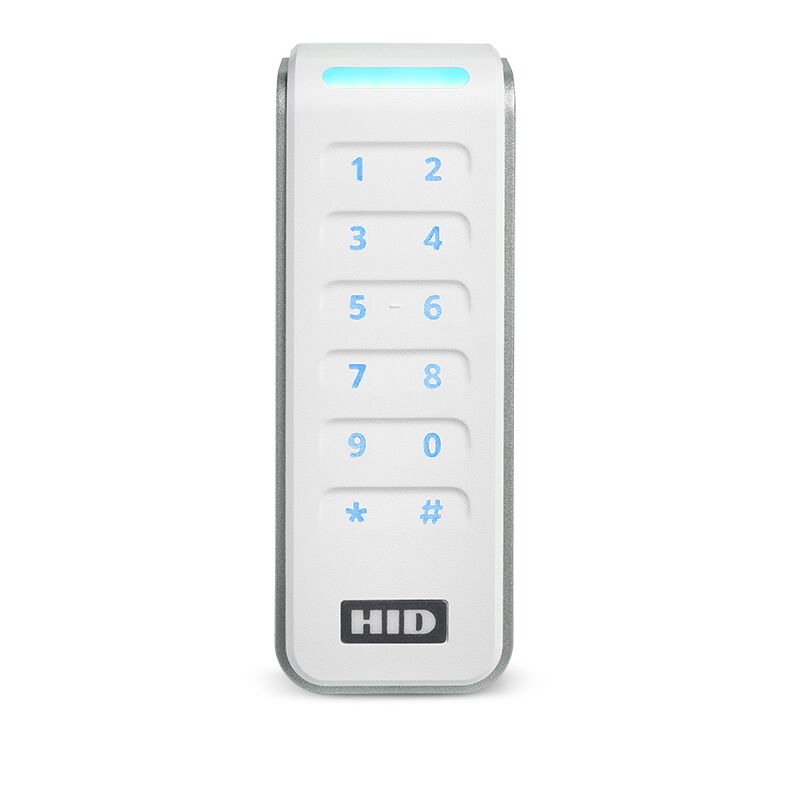

HID Signo 20K Keypad Reader, Standard Profile, Pigtail, White

The HID Signo readers are advanced access control devices designed for versatility and security. They support multiple credential technologies, including mobile access via Bluetooth and NFC, and Apple Wallet credentials. These readers feature ultra-secure cryptographic key storage, surface detection for optimized read range, and support for the Open Supervised Device Protocol (OSDP) for secure communication and remote management. With a sleek, modern design, HID Signo readers are suitable for various installations, enhancing both security and convenience in access control systems.

• Mobile support right out of the box
• Sleek and slim profile
• Pigtail wiring
• Keypad
• Configurable with Mobile Reader Manager App:
• LED colour
• OSDP - Address and baud rate
• Keypad output (4 bit buffered or PIN as 26-bit Wiegand)
• CSN output (32-bit, 34-bit, 40-bit, 37-bit, 56-bit or 26-bit with site code)
• Technology suppression
• Load mobile keys
• Bluetooth power range

• Operating voltage: 12V DC
• Standby current: 65mA
• Average current: 75mA
• Max current: 250mA
• Operating temp: -35 degrees C to +66 degrees C
• Dimensions: 45mm x 121.5mm x 21.5mm
• Weight: 110g
• Wiring: Pigtail
• Suited for mullion-mount door installations or any flat surface mounting

Supported Technologies - Standard Profile:

13.56MHz High Frequencies

• iClass Family
• iClass (legacy)
• iClass SE
• SEOS
• Mifare Family
• Classic (with SIO encoding)
• EV1/EV2 (with SIO encoding)
• CSN/UID
