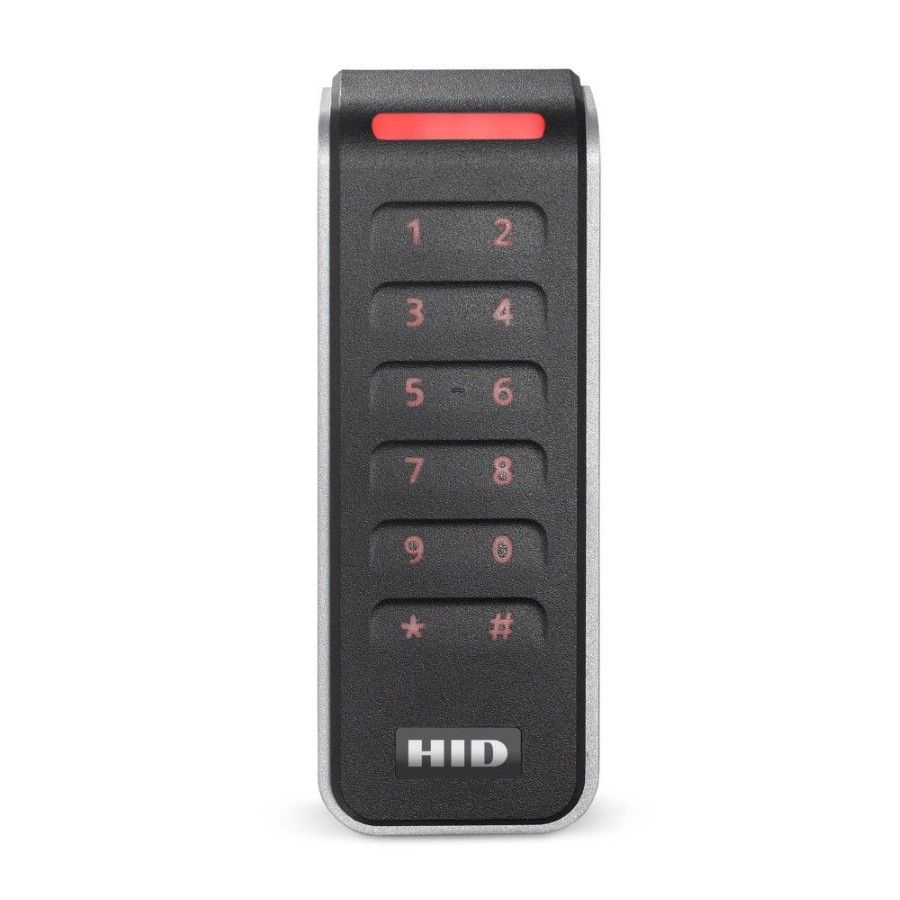

HID Signo 20K Slim 2x6 Keypad Reader, Standard Profile, Pigtail, 26 Bit EM format

Home // Access Control // Readers & Credentials // HID // HID iCLASS // iCLASS Readers // HID Signo 20K Slim 2x6 Keypad Reader, Standard Profile, Pigtail, 26 Bit EM format
HID Signo 20K Slim 2x6 Keypad Reader, Standard Profile, Pigtail, 26 Bit EM format



Code: HID-20KNKS-26EM
Brand: HID
Product Details
HID Signo 20K Slim 2x6 Keypad Reader, Standard Profile, Pigtail, 26 Bit EM format

  • Mobile support right out of the box
  • Sleek and slim profile
  • Pigtail wiring
  • Keypad
  • Configurable with Mobile Reader Manager App:
    • LED colour
    • OSDP - Address and baud rate
    • Keypad output (4 bit buffered or PIN as 26-bit Wiegand)
    • CSN output (32-bit, 34-bit, 40-bit, 37-bit, 56-bit or 26-bit with site code)
    • Technology suppression
    • Load mobile keys
    • Bluetooth power range
  • Operating voltage: 12V DC
  • Standby current: 65mA
  • Average current: 75mA
  • Max current: 250mA
  • Operating temp: -35 degrees C to +66 degrees C
  • Dimensions: 45mm x 121.5mm x 21.5mm
  • Weight: 110g
  • Wiring: Pigtail

Supported Technologies - Standard Profile:

13.56MHz High Frequencies

  • iClass Family
  • iClass (legacy)
  • iClass SE
  • SEOS
  • Mifare Family
  • Classic (with SIO encoding)
  • EV1/EV2 (with SIO encoding)

125KHz Low Frequencies

  • HID PROX
  • EM (EM4102 26-bit format)
