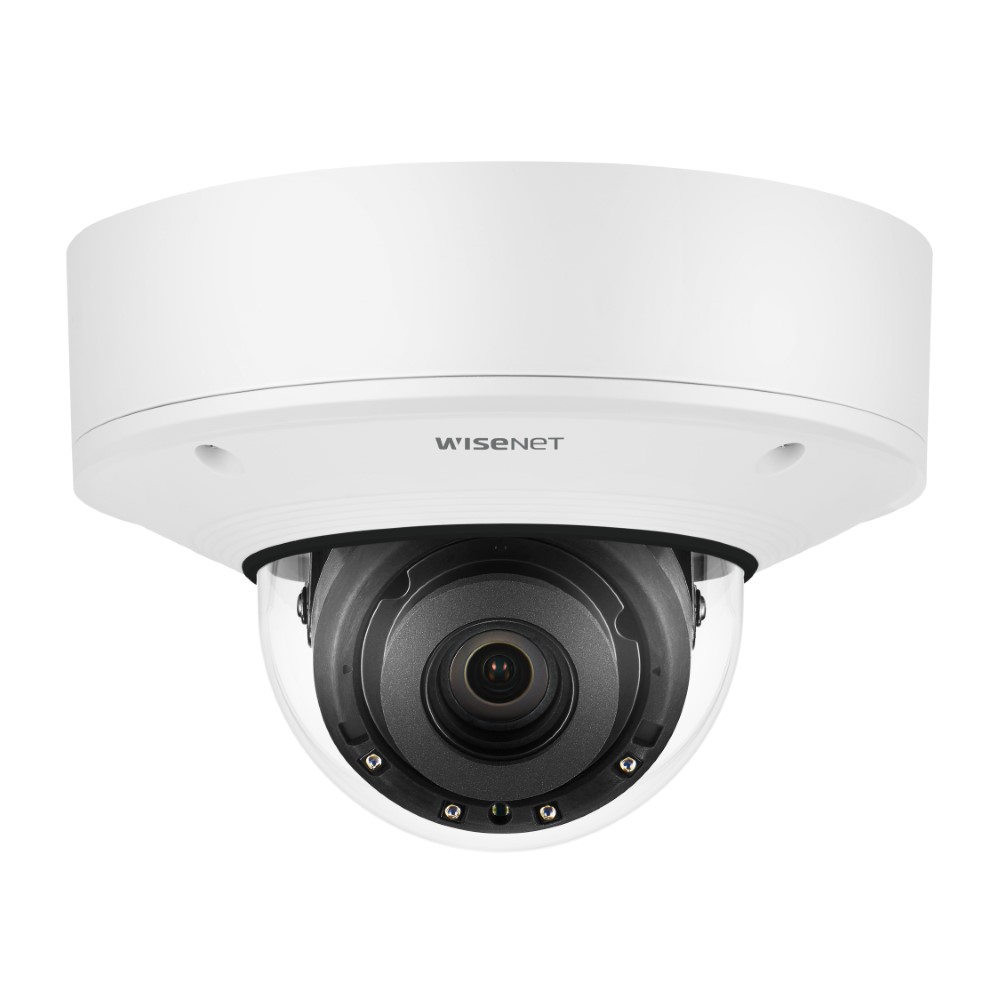

*SpOrd* Hanwha 5MP Outdoor PoE Extender Vandal Dome Camera, WDR, 50m IR, 3.9-9.4mm

Hanwha's HAN-XNV-8081RE is designed to save money and time for the integrators and end users when adding additional cameras to existing installations. For new installations, integrators can plan to run two PoE cameras per cable run. For retrofit applications where an additional camera is needed, simply replace the old camera with a PoE extender camera, then install and connect a new PoE camera. Part of the Wisenet X plus series line, the new PoE extender cameras are completely modular making them easy to install, service and upgrade. HAN-XNV-8081RE can be installed 100 meters from the switch, while the second PoE camera can extend a further 80 meters away. It is also possible to connect a standard network device to the extender.

• Max. 5MP resolution
• PoE extender (main cam, extender cam)
• PoE out: max. 12.95W at 80m
• 3.9-9.4mm (2.4x) motorised varifocal lens
• IR viewable length 50m
• Day and night (ICR), WDR (120dB)
• Hallway view, WiseStream II support
• Video and audio analytics, audio playback
• Business intelligence (people counting, queue management, heatmap)
• DIS and shock detection with built-in gyro sensor
• Modular structure, PoE+ in/ PoE out
• IP66/IP67/IP6K9K, IK10+, NEMA4X

Datasheets

• HAN-XNV-8081RE Datasheet.pdf

• 1/1.8" 6MP CMOS progressive scan
• 0.07Lux at F1.3 (colour), 0Lux (B/W, IR LED on)
• RJ-45 10/100base-T ethernet
• Micro SD / SDHC / SDXC 2 memory slot (512GB)
• White, aluminium
• Dimensions: 180x125mm
• Weight: 1.75kg
