FSH FEM6600 Single Mag Lock, Non-Monitored, 580kg

FSH-FEM6600
AVAILABLE TO ORDER
FSH FEM6600 Single Mag Lock, Non-Monitored, 580kg
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Waterloo - NSW
IN STOCK
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
IN STOCK
Balcatta - WA
IN STOCK
Canning Vale - WA
IN STOCK

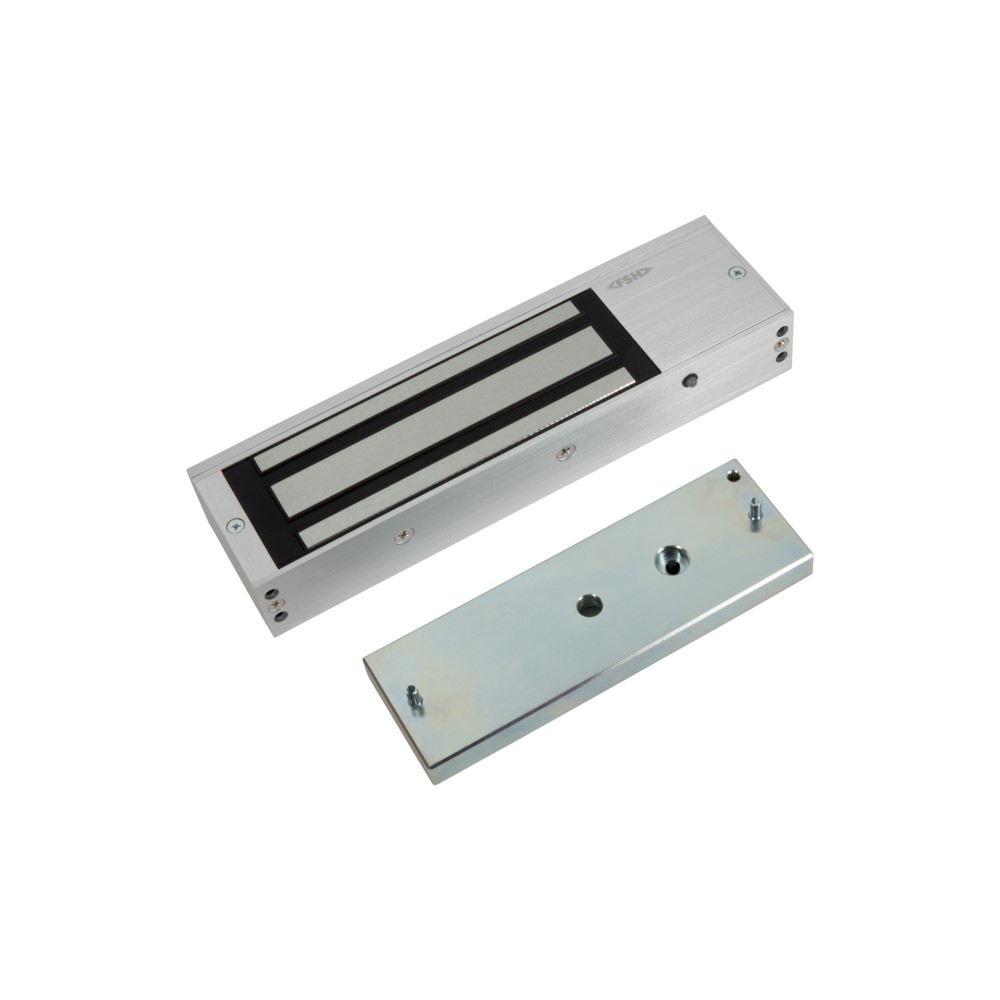

The FSH-FEM6600 is part of the FSH FEM4300 electromagnetic lock series and has a holding strength up to 280kg. Coming in different configurations such as single and double, monitored, and non-monitored and colours, including silver and black, make this range suitable for almost any installation application. The series also includes a trigger input and a red/green LED indicator to represent locked and unlocked status, as well as an output that follows the door position status (on monitored models only). Accessories such as adjustable L & Z brackets for different mounting positions and armature plates for glass doors, further extend the installation capabilities.

  • Holding Strength: 580kg
  • Max current draw at 12V: 500mA
  • Max current draw at 24V: 250mA
  • Dimensions: 268mm (L) x 73mm (W) x 40mm (D)

  • Field selectable voltage input, 12 or 24 V
  • Single door secure
  • Door and lock status monitoring sensor
  • Built-in varistor (MOV) surge protection
  • Red/Green multi-colour LED for locked/unlocked status
  • No residual magnetism
  • Fire Rated up to 2-hours
  • Black colour
  • Anodised aluminium finish

Datasheets
