The Dormakaba Evolo range of wireless locking products have a high-level integration to Inner Range’s Integriti system. The wireless locks communicate with the wireless gateway and the gateway communicates to Dormakaba’s B-Comm software. Integriti then communicates with the B-Comm software and provides a seamless interface to the wireless access solution. This integration offers a fantastic solution for sites where cabling to a door is not an option, but a complete and comprehensive keyless access control system is necessary.

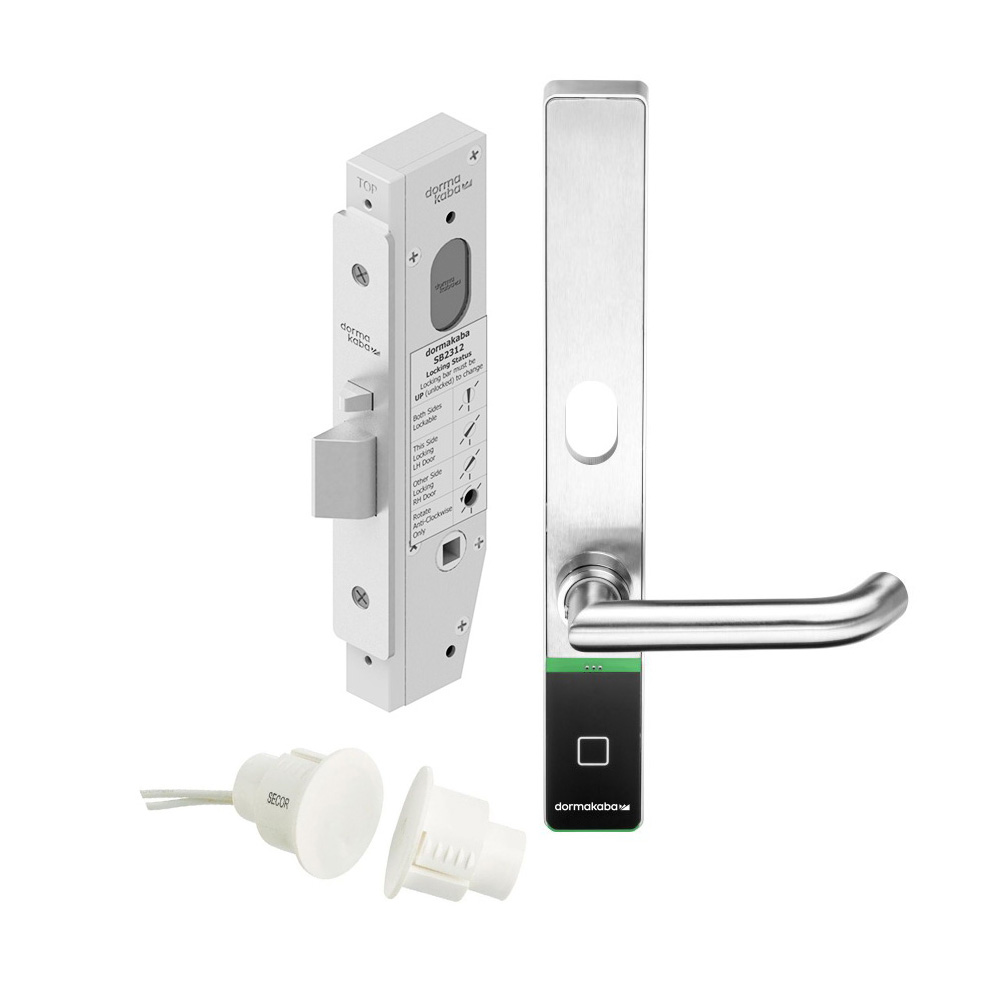

The DK-PROM-KIT-30 kit includes Dormakaba's C-Lever Pro wireless lock, the SB2312 mortice lock and one CSD-2002 reed switch. The C-Lever Pro is monitored; however, a reed switch is required.

• AS1428 Australian Standards compliant
• CSN/UID RFID reader
• Reader above lever or reader below lever orientation installation
• Integriti integration
• 304 grade stainless steel
• Input terminal for door monitoring, reed switch required
• Black facia cover

• Colour: black
• Weatherproof: IP55
• Power: 2x 1.5V AA batteries
• Battery life: Up to 150,000 cycles
• Operating temperature: -25 to 70 degrees Celsius
• Dimensions: 39.8mm (W) x 298mm (H)
• Spindle: 8mm
• Inputs: 1 (for door monitoring)
• Backset: 30mm
