Dormakaba KML-CCW30F Electric Mag Lock, Flush Mount, 135kg, 12/24V DC

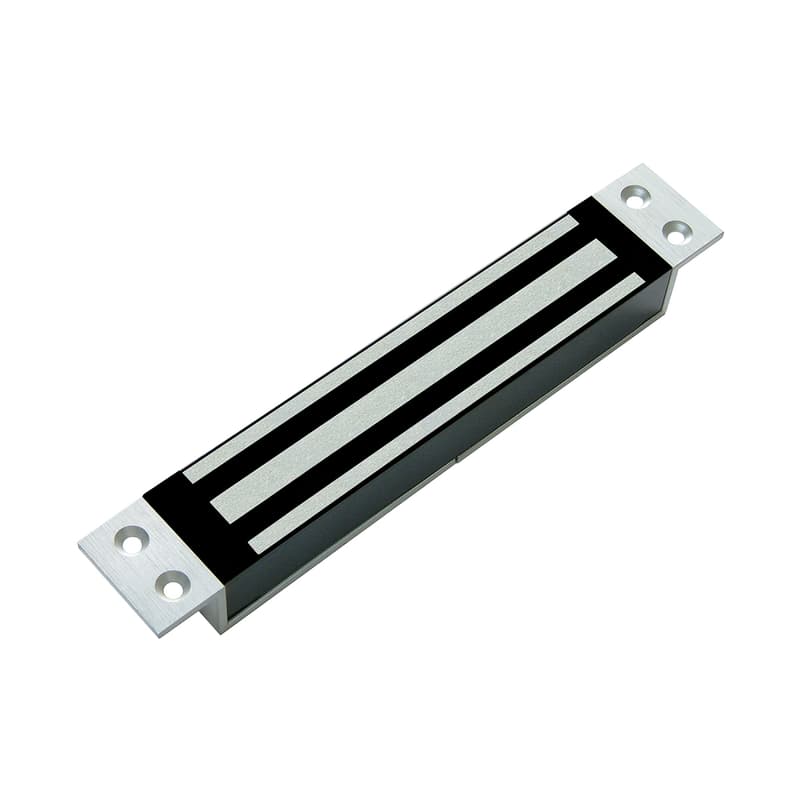

The Dormakaba DK-KML-CCW30F is a morticed-type electromagnetic lock which can be used for single and double sliding action doors. It has a holding force of 135 kilograms and dual voltage with lock sensor. It also features a built-in voltage spike suppressor and is UL Listed, and CE approved.

• Morticed type - single door, sliding door and double action door
• Built-in voltage spike suppressor
• Lock sensor (hall effect IC)

Datasheets

• DK-KML-CCW30F Datasheet.pdf

• Dimensions: 202L x 34.5W x 21D(mm)
• Armature Plate Dimensions: 130L x 32W x 8D(mm)
• Holding strength: 135kg
• Operating voltage: 12/24VDC
• Current draw: 360mA/12VDC, 180mA/24VDC
• Material: brushed anodised aluminium housing, zinc plated steel armature
