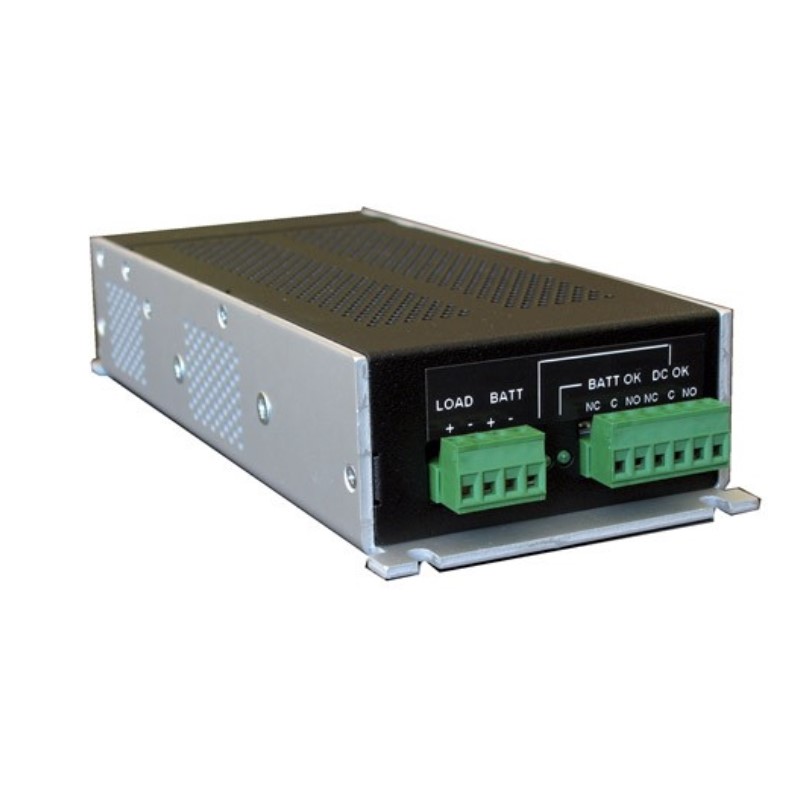

Jack Fuse Power Supply, 12VDC, 138W Charger, Low Battery Outputs
Code:
CSD-PB256
Brand:
Jack Fuse
Product Details
Jack Fuse Power Supply, 12VDC, 138W Charger, Low Battery Outputs
Overview
Features
Specifications
The CSD-PB256 is a 138 watt battery charger.
138W 12VDC
Battery Backup System
DC UPS Connectable
Independent Load and Battery Current Limited
Converter ON/OK alarm
Battery Low Alarm
Battery low voltage disconnect switch with internal electronic circuit breaker
Battery Overload protection
Conformal Coating option for wet areas
C-Tick Approved
INPUT
Input Voltage: 190-.264Vac, or 190-.400Vdc
Frequency: 45 to 65 Hz
Input Current: 3A maximum
Inrush current: 15A on cold start
Line Regulation: 0.2% typical
OUTPUT
Output Voltage: 13.8Vdc
Output Power: 138W, See power derating curve
Output Current: 13.8Vdc: 10A
Load regulation: 2% typical
Ripple & Noise: 25 mVp-p (13.8Vdc output)
Efficiency: > 80%
PROTECTION
Current limit type: Constant current > LVD volts
Load circuit: Foldback & hiccup < LVD volts
Short circuit protection: Indefinite, auto-resetting
Over-voltage protection: 15.5 to 19.5 V latching (13.8Vdc output)
Reverse polarity protection: Internal fuse
ENVIRONMENTAL
Operating temperature: 0 to 50C ambient
Humidity: 5 to 90% relative humidity (non-condensing)
Over-temperature protection
Automatic & auto-resetting
