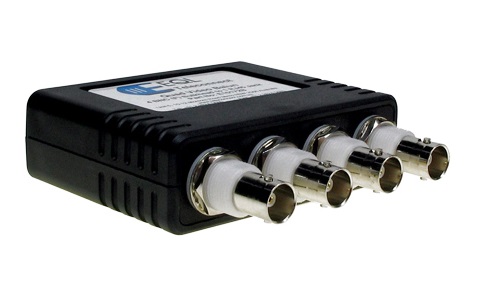

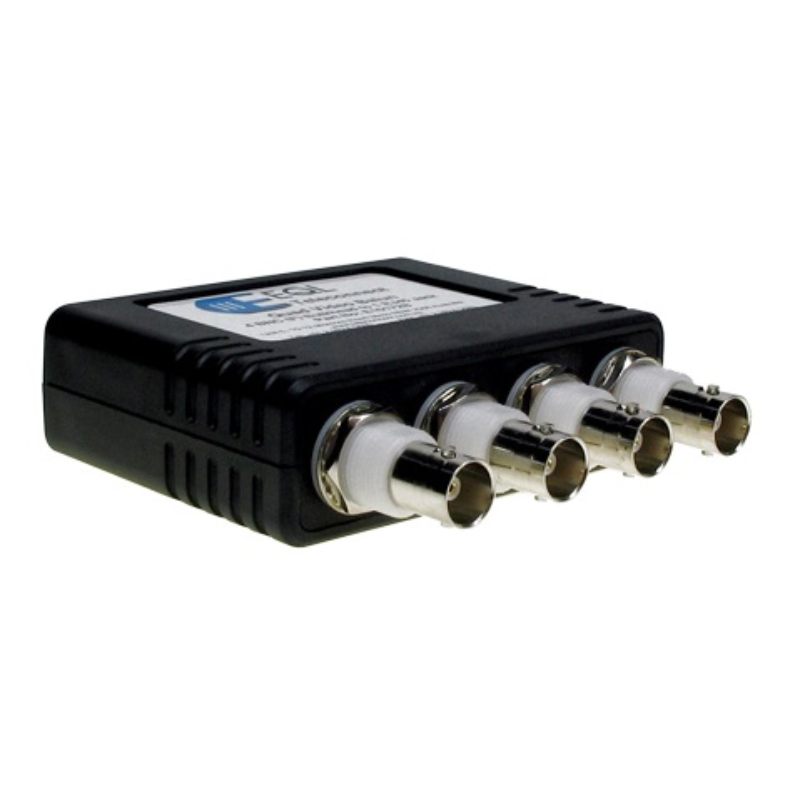

Quad BNC Female Video Balun Bulkhead RJ45 Jack

CSD-E10172B
AVAILABLE TO ORDER
Quad BNC Female Video Balun Bulkhead RJ45 Jack

In many security applications, video signal is carried over 75 ohm coaxial cabling and there is a need to convert to balanced transmission using lower cost 100 ohm twisted?pair cables.These Quad Baluns enable 4 video signals to be interfaced using coaxial on one side?to twisted pair cabling on the other using modular RJ45 connectors to achieve quick and reliable connections.Used in conjunction with E10172P or E1072PS will enable a neat professional?installation for up to 16 video paths.

  • Offers 4 video paths from BNC Female Bulkhead Panel Mount into 1 RJ45 socket
  • Bi-directional signal conversion
  • Housed in a fire retardant wall mountable Case
  • Impedance 75 to 100 Ohm
  • Passive device (no power required)
  • Compatible with E10172 / E10172P / E10172PS
  • Bandwidth: DC to 8MHz
  • Insertion Loss: < 2 dB to 8MHz
  • Impedance: 75 ohm Coaxial, 100 ohm RJ45
  • Maximum Signal Voltage: 1.1 Vp-p
  • Return Loss: > 15 dB to 8 MHz
  • Cross Talk: > 50 dB to 8 MHz
  • Common Mode Rejection: > 40 dB @ 8 MHz
  • RJ45 Contacts: Gold, 50 micro inch
  • Temperature Range: 0 to 55 oC operating, 95% Relative Humidity
  • Dimensions: 81 x 60 x 24mm
