Jack Fuse Auto Door Interface (ADI), V3

CSD-ADI-V3
AVAILABLE TO ORDER

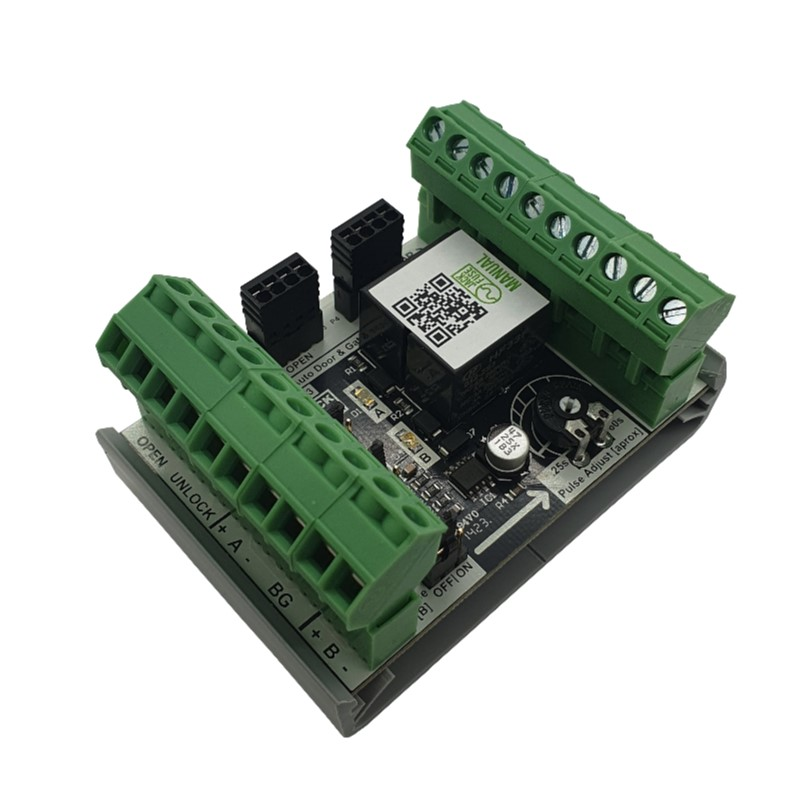

Jack Fuse Auto Door Interface (ADI), V3

The CSD-ADI-V3 provides an interface between access control systems, fire indication panels and automatic doors/gates. An adjustable delay can be implemented to provide door/gate/lock sequencing.

  • Two interface relays with LED indicators
  • EOL resistor sockets for 2 x door input supervision
  • Built in pulse timer - 250ms to 60s
  • 45 Degree pluggable terminals
  • Break glass input
  • Clear division between trades (EACS & Door contractors)
  • Multiple operation modes
  • Quick SnapTrack mounting

  • Maximum conductor size: 2.5mm2
  • Max current per output: 3A
  • Voltage range A input: 11-28VDC (Typical 13.8-27.6)
  • Voltage range B input: 14VDC (Typical 13.8)
  • Pulse timer range: 250ms-60s (Approximately)
  • Dimensions: 55 L X 82 W X 43 H (mm)
  • RoHS Compliant
  • AUS/NZ (RMC-EMC) 61000.6.3 Compliant
  • Primary materials: PVC, fiberglass, Polyamide 66

add remove Description

No description available for this product

  • Maximum conductor size: 2.5mm2
  • Max current per output: 3A
  • Voltage range A input: 11-28VDC (Typical 13.8-27.6)
  • Voltage range B input: 14VDC (Typical 13.8)
  • Pulse timer range: 250ms-60s (Approximately)
  • Dimensions: 55 L X 82 W X 43 H (mm)
  • RoHS Compliant
  • AUS/NZ (RMC-EMC) 61000.6.3 Compliant
  • Primary materials: PVC, fiberglass, Polyamide 66
