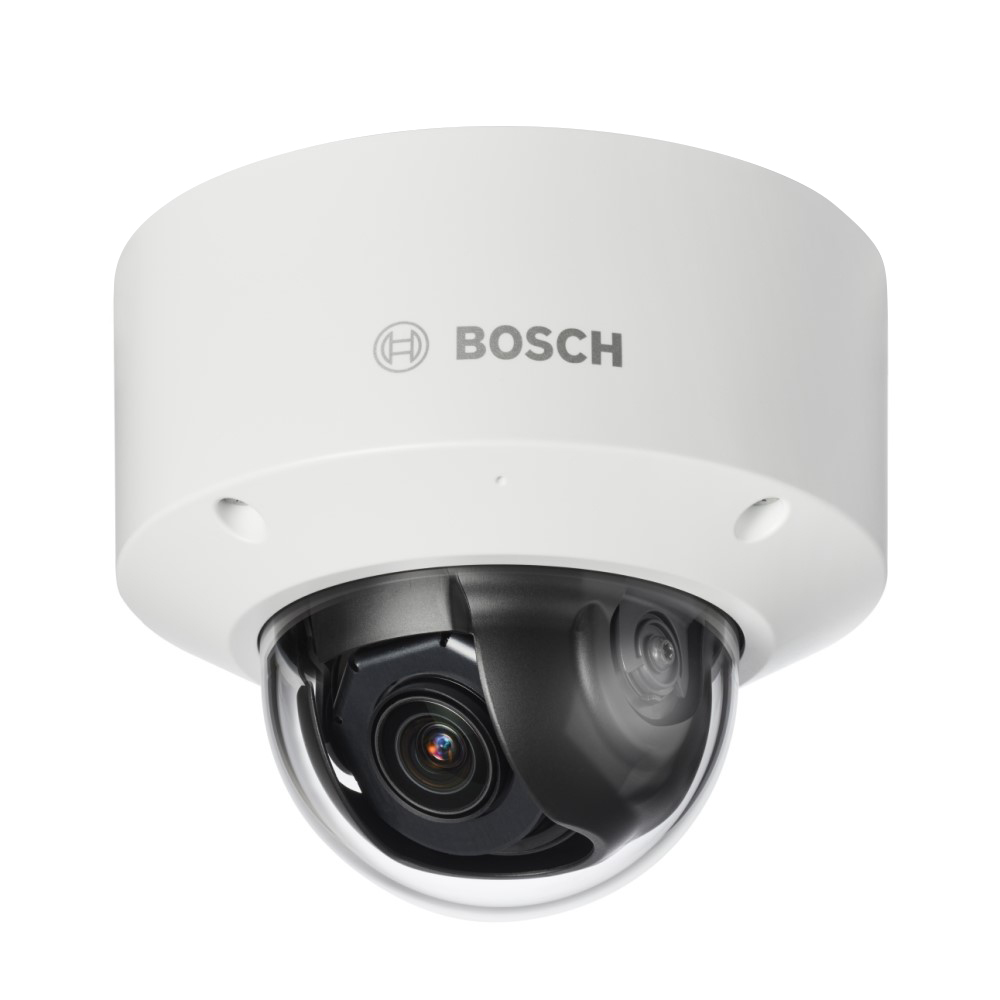

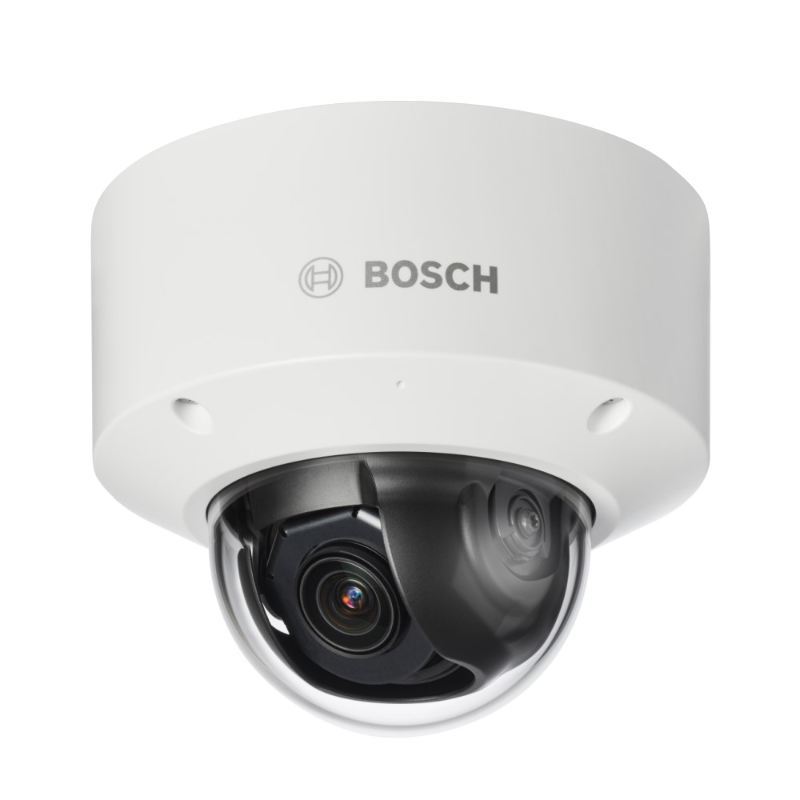

The Bosch FLEXIDOME IP BOS-NDV-8504-R is an 8MP indoor motorised varifocal dome camera with a 3.9-10mm lens. By using the Bosch Project Assistant app, the installer can enable the use of the PTRZ functionality to ensure installation and commissioning can be done in very little time. Included with the 8000i series cameras are Intelligent Video Analytics (IVA) and Camera Trainer to enable the highest levels of analytic accuracy for mission-critical applications such as perimeter protection of airports, critical infrastructures and government buildings, border patrol, ship tracking and traffic monitoring - even in challenging environments.

• Motorised Pan, Tilt, Roll, and Zoom (PTRZ) to set the required field of view with the Bosch Project Assistant app
• 1/1.8" 4K UHD sensor and starlight technology to provide highly detailed images even in extreme low-light situations
• High Dynamic Range to see every detail in both bright and dark areas of the scene
• Built-in Intelligent Video Analytics with object detection to trigger alerts and quickly retrieve data with the highest levels of reliability
• Camera Trainer to train the camera to recognise user-specified target objects for both moving and non-moving objects

Datasheets

• BOS-NDV-8504-R Datasheet.pdf

• Colour: white
• 1/1.8 inch CMOS sensor
• Lens: 3.9 - 10mm
• Video compression: H.265, H.264, M-JPEG
• Max resolution: 3840 x 2160
• Memory slot: dual SDXC/SDHC microSD card slots, up to 2TB
• Power supply: PoE IEEE 802.3af / 802.3at Type 1, Class 3
• Dimensions: (D x H) 177mm x 148mm
