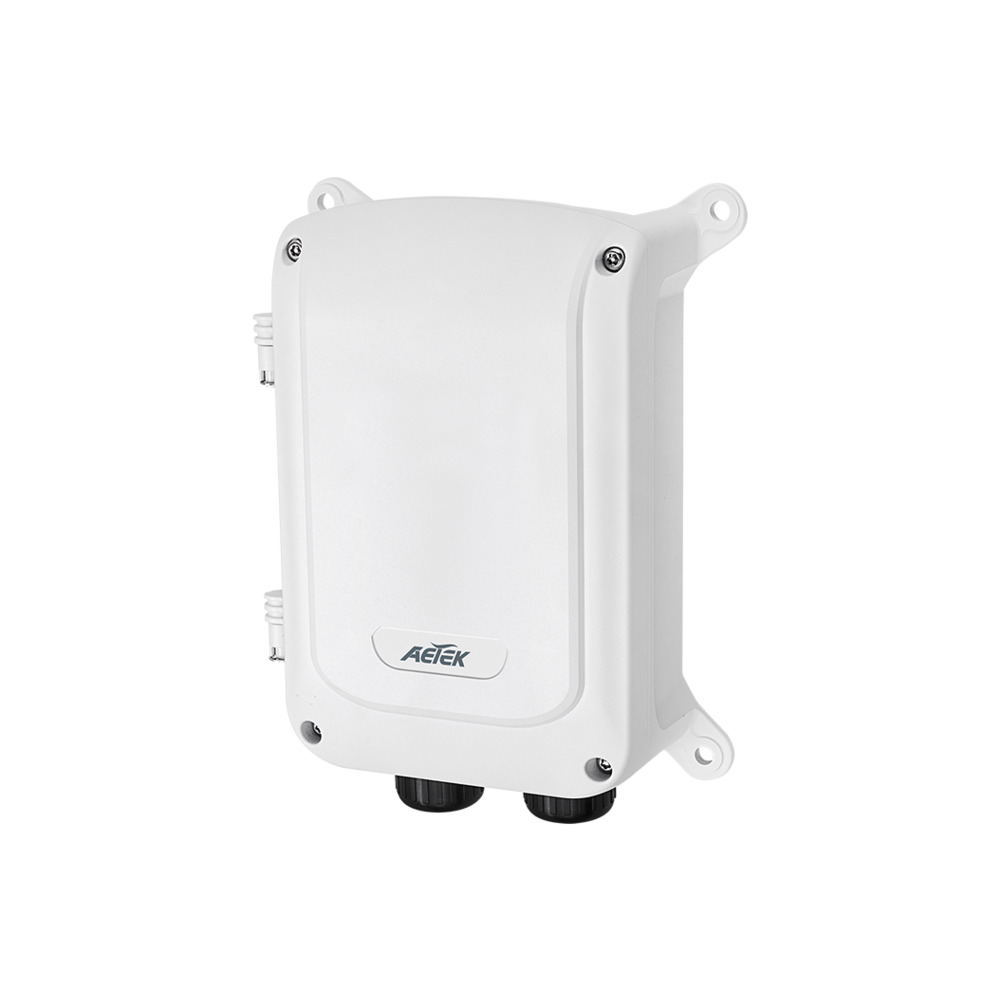

Aetek 4 Port Outdoor 1Gb 90W bt PoE Switch, 2x 24V POE, 2x SFP IP67/IK10, 150W

AET-H42-04291150
AVAILABLE TO ORDER
Aetek 4 Port Outdoor 1Gb 90W bt PoE Switch, 2x 24V POE, 2x SFP IP67/IK10, 150W

The AET-H42-04291150 is a highly durable Gigabit IEEE802.3bt PoE Switch, designed to meet the demands of outdoor wireless surveillance. With IP67 & IK10 ratings, along with 6KV PoE and 10KV AC power surge protection, it ensures consistent operation in harsh environments, ranging from -40 to 65 degrees Celsius.

This all-in-one power source equipment (PSE) offers 90W bt PoE output ports, supporting a wide range of high PoE-powered devices, including PTZ/multisensor IP cameras, network speakers, wireless nodes and more. Its unusual adjustable 24VDC or 56VDC Passive PoE outputs provide flexibility to power IEEE802.3af PoE devices and various Passive PoE wireless nodes as well, eliminating the need for additional power adapters. Additionally, its DC power outputs allow for connections with non-PoE devices, such as LTE routers and IR LEDs.

All the versatile outputs make AET-H42-04291150 a comprehensive solution for diverse outdoor surveillance applications.

  • 90W PoE Outputs to support IEEE 802.3bt/at/af PoE devices
  • Adjustable 24V/56VDC Passive PoE Outputs to support
  • 24V/56VDC Passive PoE Wireless nodes
  • IEEE 802.3af PoE devices
  • 12V/24VDC Output to support non-PoE devices Features
  • Flexible SFP transceiver port for uplink
  • IP67 water and dust resistance rating
  • IK10 impact resistance rating
  • 6KV PoE surge protection
  • Wide range of operating temperature: -40 to 65 degrees Celsius
  • Support 10/100/1000Mbps data rate
  • 1x input GbE RJ45 port + 1x output Hybrid Fiber-Copper port - Provides output 57VDC, 750W power budget
  • Include 1.25G Single mode, LC connect, 10KM SFP Module
